A Work in Progress: Steam



This guide was made for entry:
Steam
In Contest:
typography fun


step 1 of 17

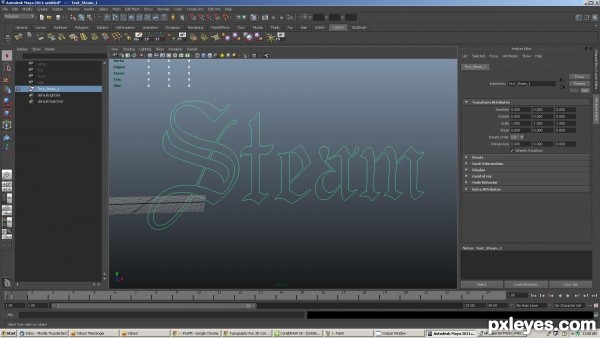

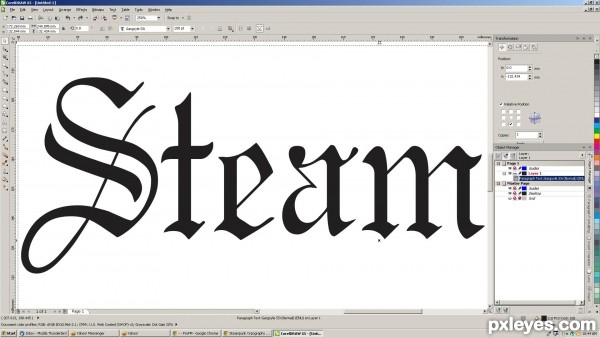

started in corel, used the gargoyle font

Creation of Steam: Step 1

step 2 of 17

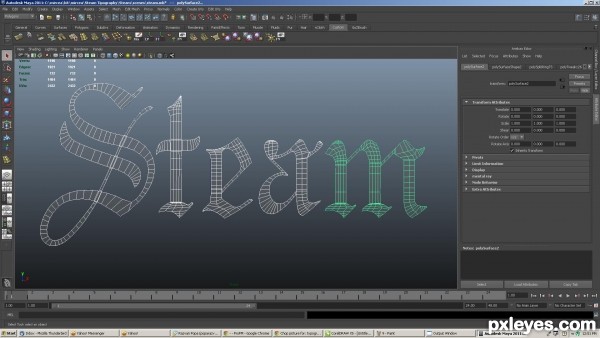

used the curves as guides. The geometry that maya makes from curves or by using the make text comand is messy. For what we need to do we need clean geometry

Creation of Steam: Step 2

step 3 of 17

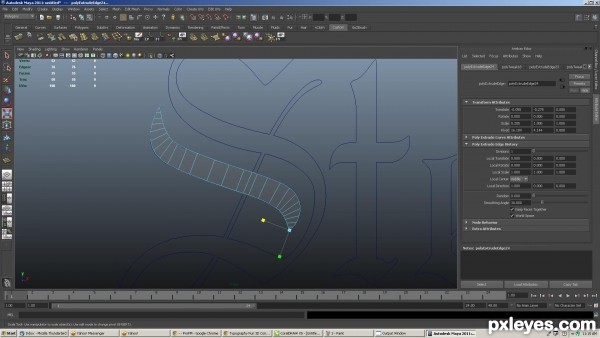

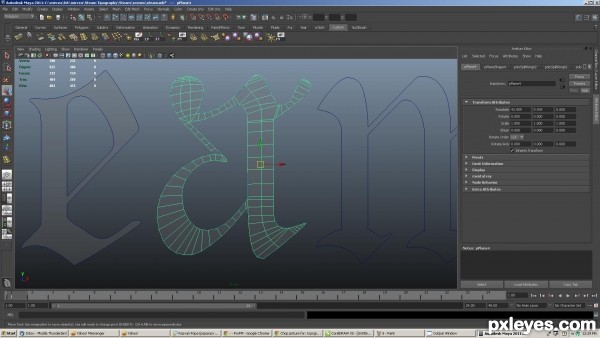

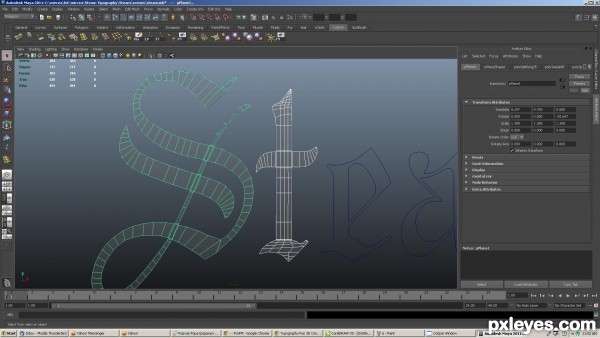

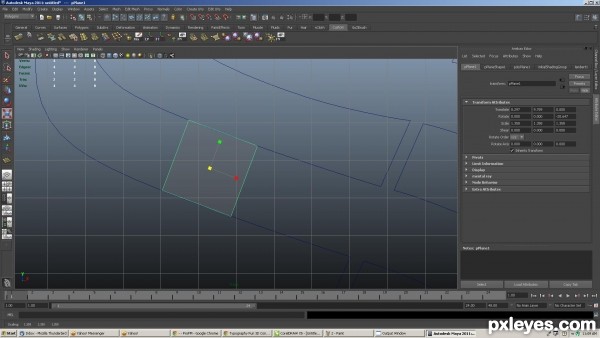

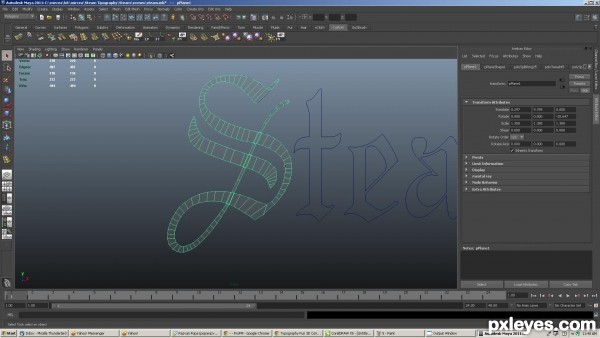

started to model the letters using a plane

Creation of Steam: Step 3

step 4 of 17

Creation of Steam: Step 4

step 5 of 17

Creation of Steam: Step 5

step 6 of 17

Creation of Steam: Step 6

step 7 of 17

Creation of Steam: Step 7

step 8 of 17

Creation of Steam: Step 8

step 9 of 17

Creation of Steam: Step 9

step 10 of 17

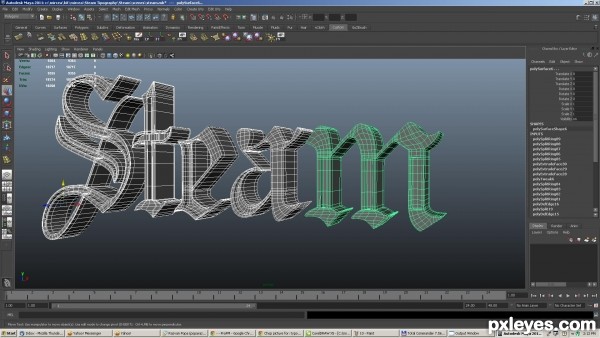

final model

Creation of Steam: Step 10

step 11 of 17

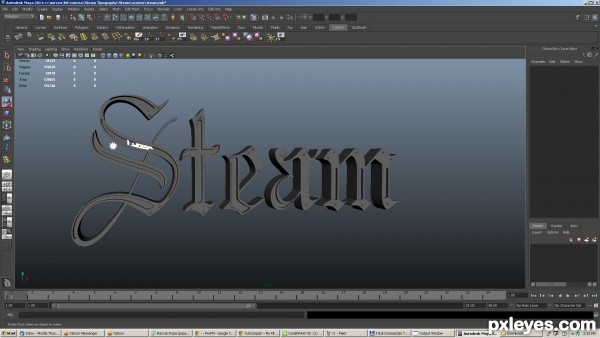

extrude the middle of the letters

Creation of Steam: Step 11

step 12 of 17

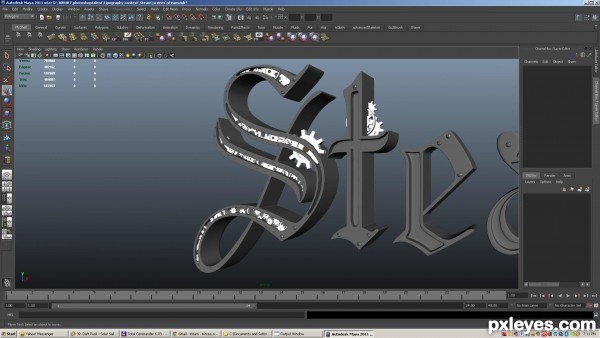

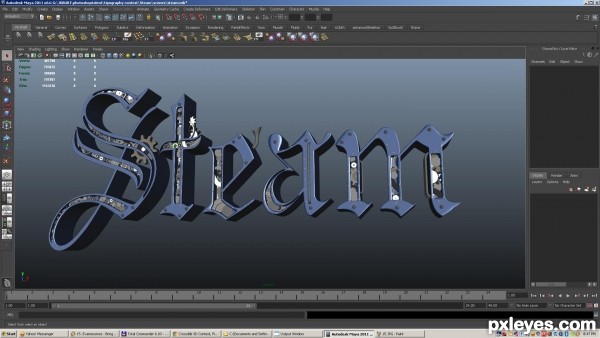

made some simple shapes from cylinders to resemble watch wheels

Creation of Steam: Step 12

step 13 of 17

Creation of Steam: Step 13

step 14 of 17

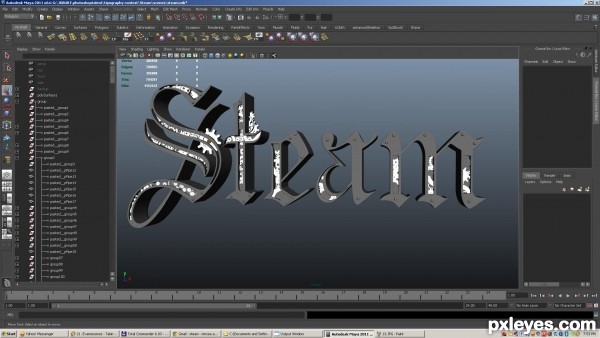

used copy paste to duplicate the wheels

Creation of Steam: Step 14

step 15 of 17

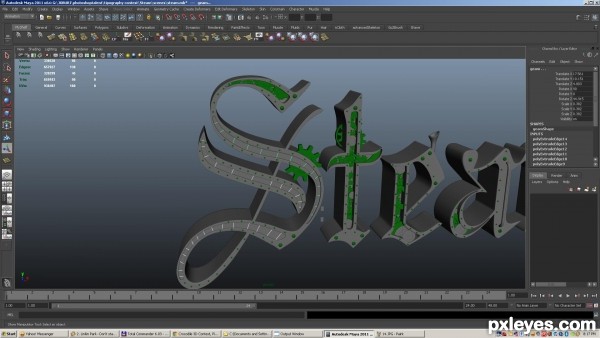

started to texture

Creation of Steam: Step 15

step 16 of 17

final object, rendered using IBL in Mental Ray with FInal Gather turned on. Used the factory image as a background and added the steam in Photoshop

Creation of Steam: Step 16

step 17 of 17

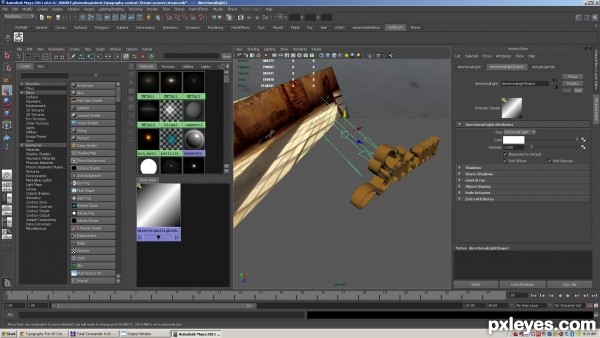

aded a back lightsource to make a new shadowpass

Creation of Steam: Step 17

Final result

Creation of Steam: Final Result
