The Lever,
1. Cylinder, rounded edges.
2. H spline, extrude, FFD modifier, Hyper Nurbs, Small point adjustment.
1. Cylinder, rounded edges.
2. H spline, extrude, FFD modifier, Hyper Nurbs, Small point adjustment.
step 1 of 6
step 2 of 6

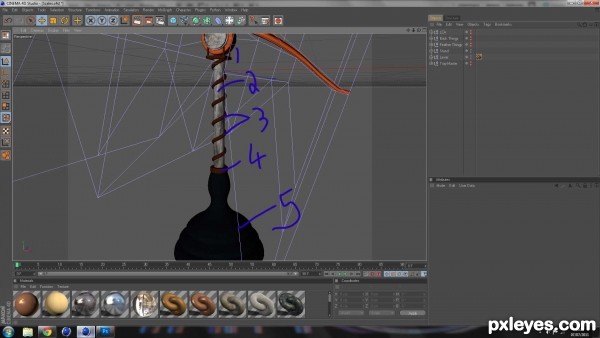

The Stand:
1. 4 verticle cylinders ontop of a beveled cube.
2. main shaft cylinder
3. helix spline, sized and positioned to match center part, with circle spline attached as a sweep nurb.
4. Little cylinder base
5. Lathe nurbs on a biexer spline drawn freehand.
1. 4 verticle cylinders ontop of a beveled cube.
2. main shaft cylinder
3. helix spline, sized and positioned to match center part, with circle spline attached as a sweep nurb.
4. Little cylinder base
5. Lathe nurbs on a biexer spline drawn freehand.
step 3 of 6

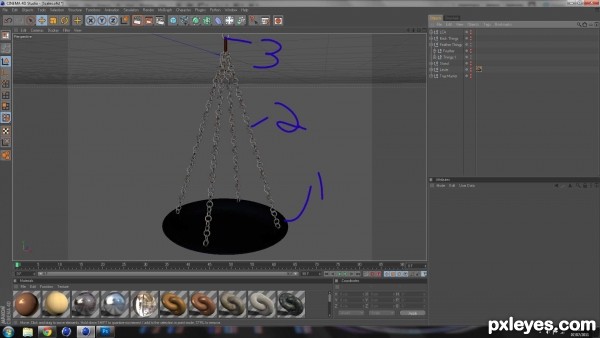

Thingy.
1. Base Plate, point modeled a disc object, added some half torus for clips.
2. draw spline, duplicate torus along spline with rotation.
3. Cylinder, torus, clever little tweaks so it all fits.
1. Base Plate, point modeled a disc object, added some half torus for clips.
2. draw spline, duplicate torus along spline with rotation.
3. Cylinder, torus, clever little tweaks so it all fits.
step 4 of 6
Weights:
1. Brick, Cube, basic modeling, texture from source. Added B&W version into bump and displacement for tough texture edges.
2. Feather, spline freehand, circle sweep, select edges, add hair, mess around with parameters.
1. Brick, Cube, basic modeling, texture from source. Added B&W version into bump and displacement for tough texture edges.
2. Feather, spline freehand, circle sweep, select edges, add hair, mess around with parameters.
step 5 of 6

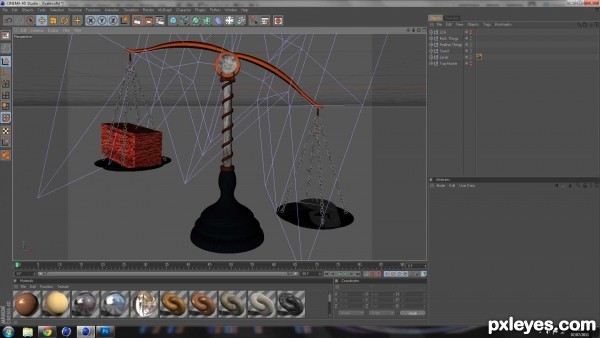

Put it all together
step 6 of 6

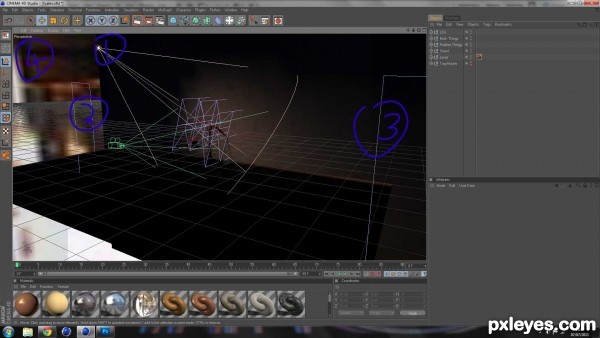

LCA - Lights, Camera, Action
1. Spot light (orangeish), soft shadows
2. Area light (blueish)
3. Area light (blueish)
4. HDRI image from object library added to sky object.
FINAL Render:
Global illumination
Ambient Occlusion
1. Spot light (orangeish), soft shadows
2. Area light (blueish)
3. Area light (blueish)
4. HDRI image from object library added to sky object.
FINAL Render:
Global illumination
Ambient Occlusion
Final result
