A Work in Progress: Pool Table

This guide was made for entry:
Pool Table
In Contest:
pool table

step 1 of 15

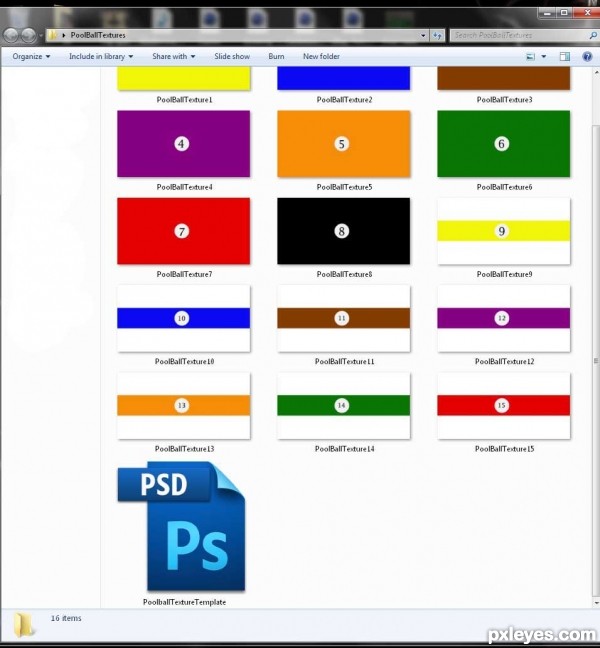

I created my own original textures for the pool balls using a few pictures I have to get the colours, numbers and proportions correct.

step 2 of 15

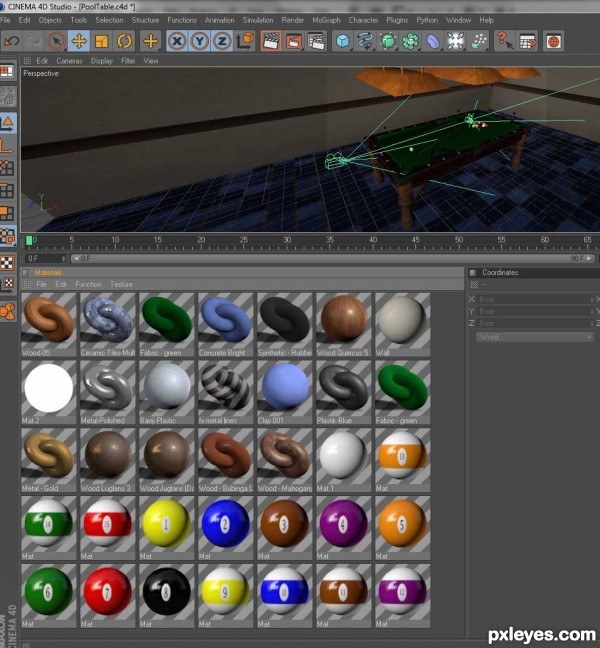

These are all the textures that I used in the piece, except for those shown in the previous step they all came from the content browser.
I did change some minor settings just from experience, ie change the reflectivity a bit, increase certain levels.

step 3 of 15

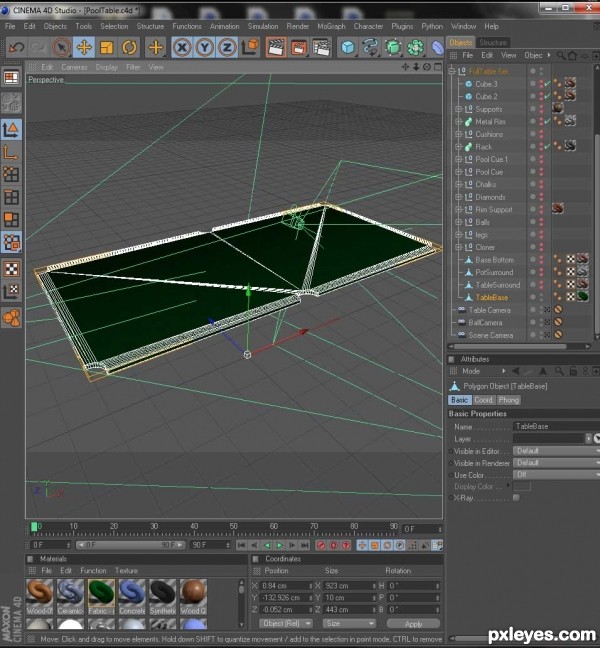

Okay, so now I started on the modeling, primarily I just used memory of what pool tables look like and what the proportions would be good. I just used basic tools along the way to build up each stage, adding more and more detail as I went.

step 4 of 15

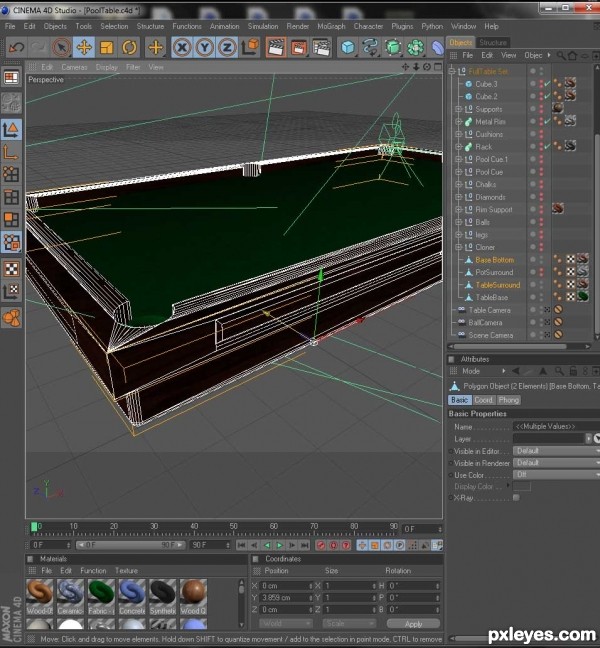

In this stage I have added a surround and base under the top piece. I used 6 cylinders in an array as Boole objects on each of my 3 separate base parts to make the pockets, I dud lots of poly modelling, ie inner extrude a little, extrude a little. Add a bevel to the edges.

step 5 of 15

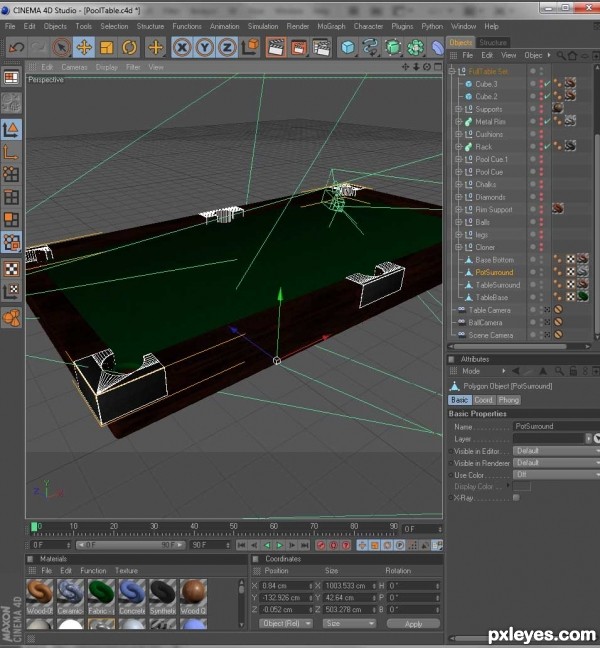

To get a pot surrounds I took the base rim and then used the knife tool to cut out a bunch of segments, then individually increased the size of the parts to make them slightly larger than the surround and added a little bevel.

step 6 of 15

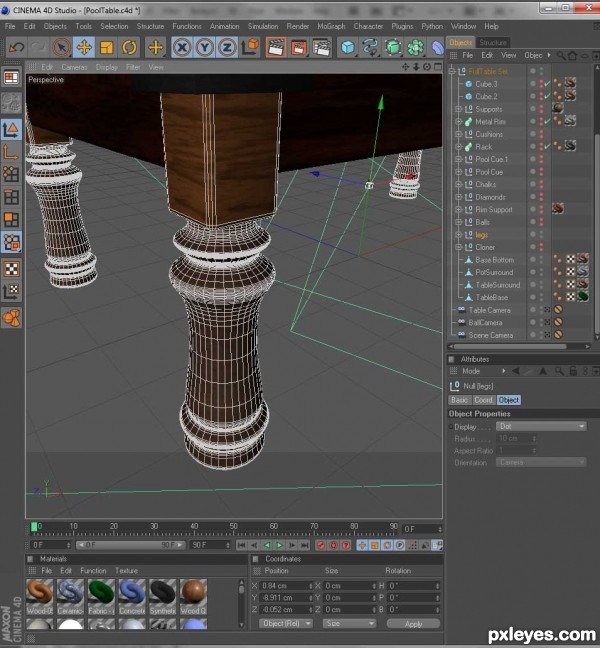

The legs are each made up of 2 parts, the top is simply a cube, the main leg is a spline with loft nurbs applied to get a nice carved looking leg.

step 7 of 15

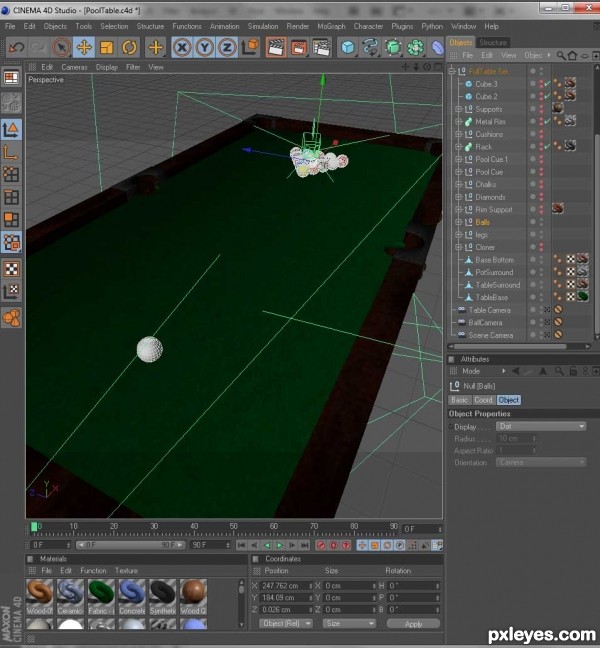

For the balls I used spheres (obviously) which had render perfect turned on, then I placed my materials onto them and randomly rotated each one for more realistic look

step 8 of 15

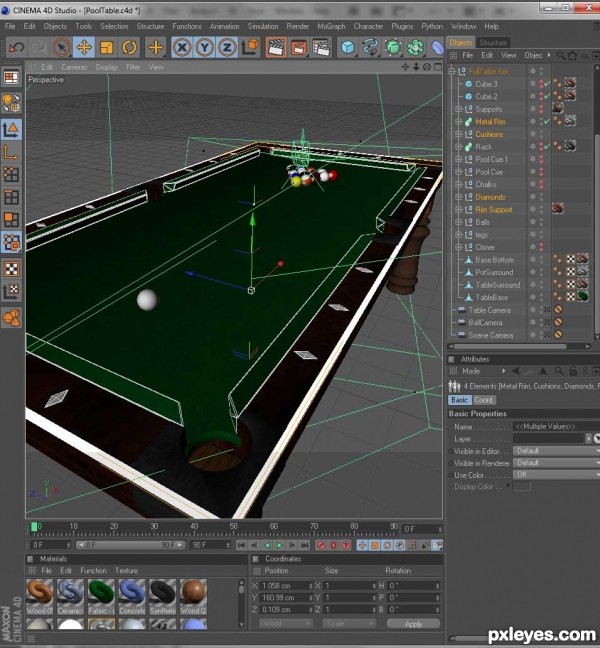

Okay so this was about what I considered the base, so I started adding lots more detail. The diamonds around all the edges, the cushions, a chrome edge. used splines and extrudes, or sweeps to make these.

step 9 of 15

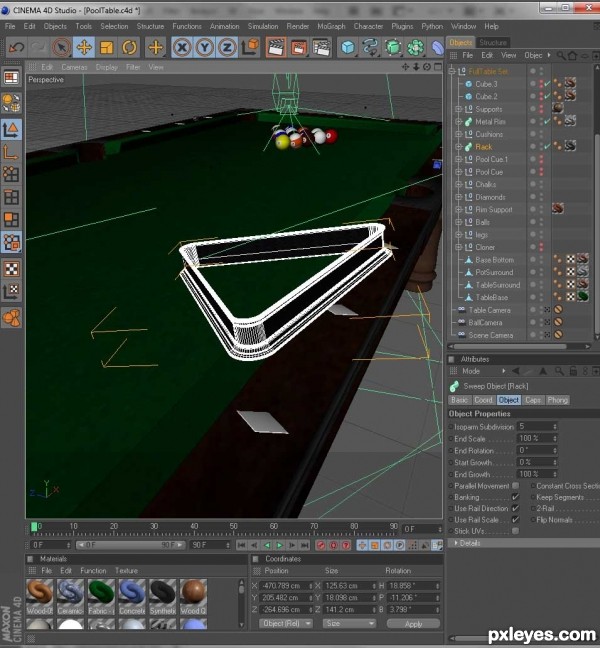

triangle, used a 3 sides n-side spline, then drew the shape I wanted, used a sweep nurb.

step 10 of 15

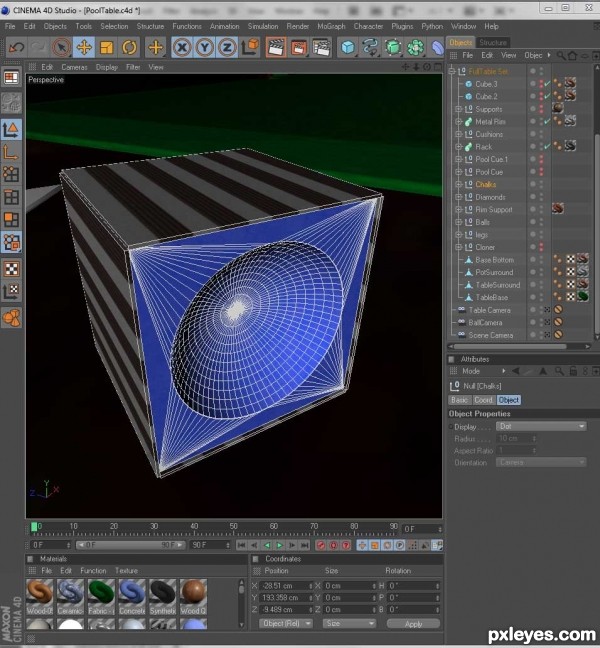

chalk, basic box, smaller box inside, placed high count sphere slightly into the "chalk" and boole it out.

step 11 of 15

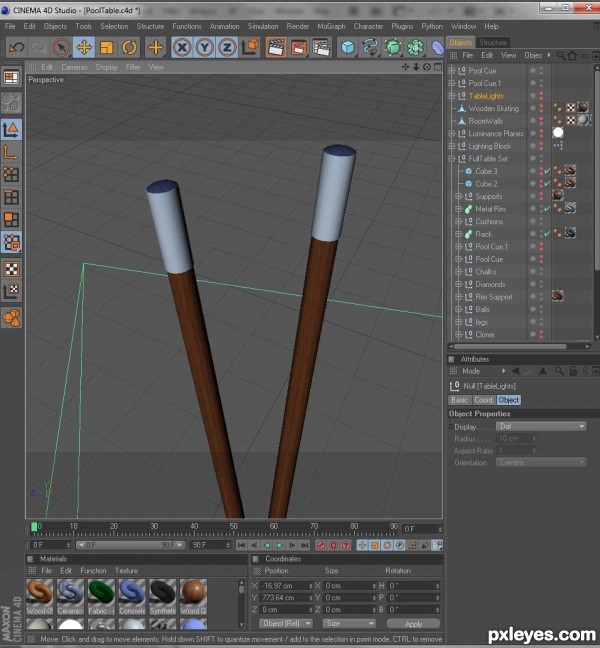

pool cues, a number of basic cylinders, main one tapered to one end, selective polys for parts of the texture. Plastic cap and top of a sphere for the end bit.

step 12 of 15

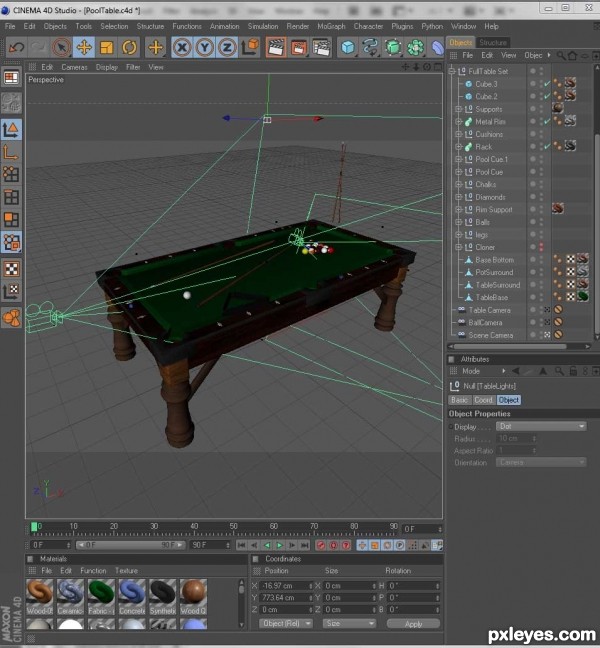

This is just how it looked at this stage I think.

step 13 of 15

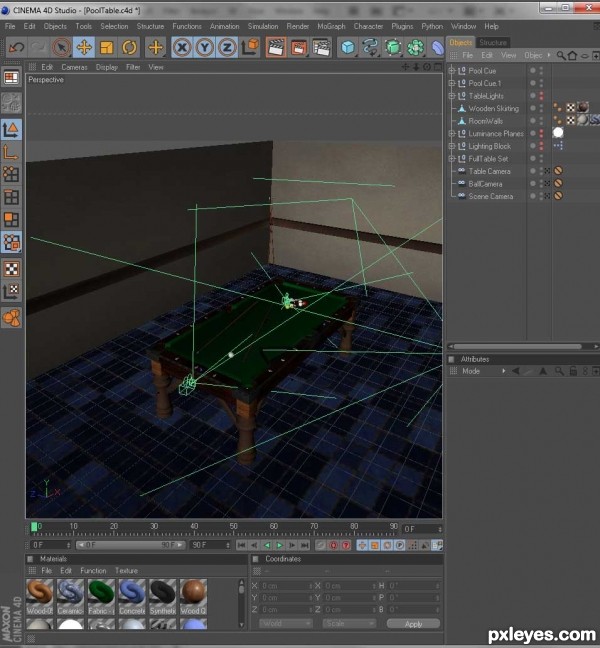

So I added a room, custom basic dirtyish texture on the walls, made a wooden bit as a surround also and used tiles for the floor.

step 14 of 15

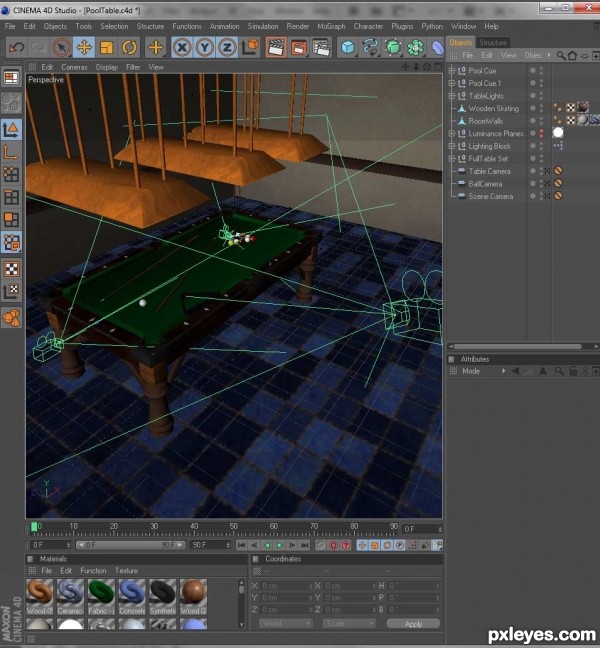

Added the lighting, its a bunch of luminance materials for the planes all around for the reflections. I did 3 as would be realistic from about the table directly in casings, and then did a bunch around the side of the room.

step 15 of 15

Oh and the last step also showed the ambient light setup I used. In this stage, the final one, I show the 3 camera sets I used for the final renders, the long table show, the close up of the balls and the scene camera. I did these as protected camera set up so that I could easily switch between them.

Final result
