A Work in Progress: Morning Glory



This guide was made for entry:
Morning Glory
In Contest:
ermerging


step 1 of 25

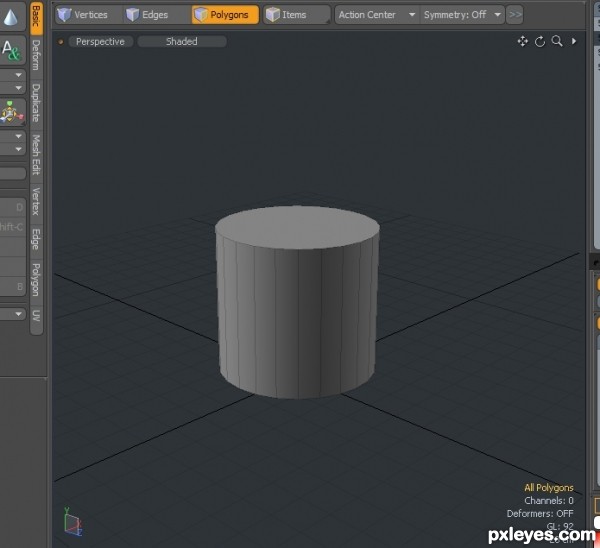

Standard cylinder primitive 24 sides 1 segment.


Creation of Morning Glory: Step 1

step 2 of 25

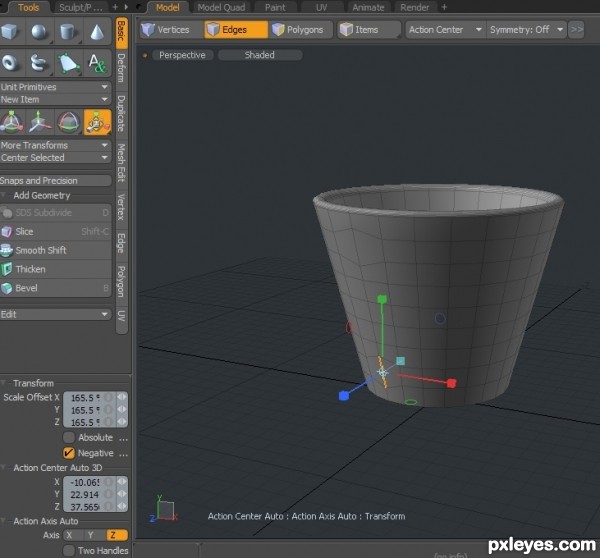

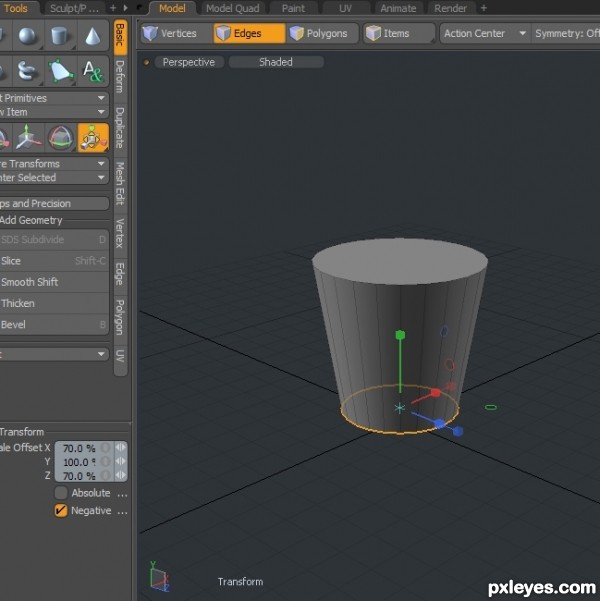

Top and bottom edges are selected and scaled in by 30%.

Creation of Morning Glory: Step 2

step 3 of 25

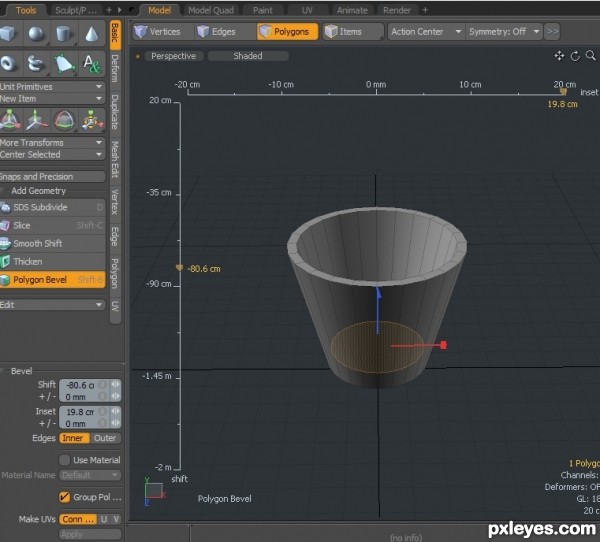

Polygon bevel tool is used for the inside of the cup.

Creation of Morning Glory: Step 3

step 4 of 25

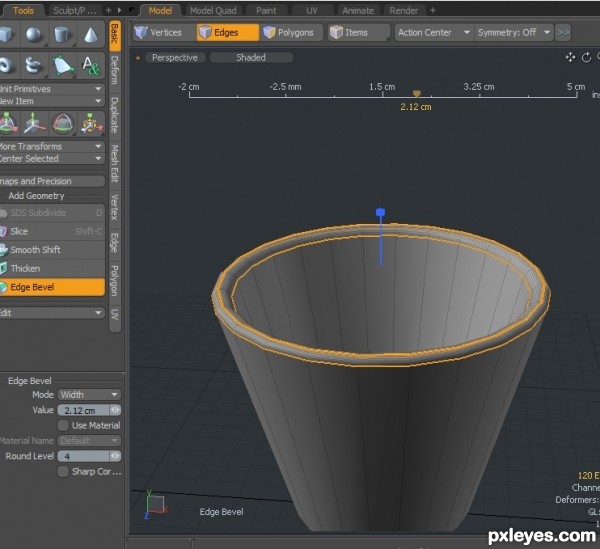

Edge bevel with a round level of 4.

Creation of Morning Glory: Step 4

step 5 of 25

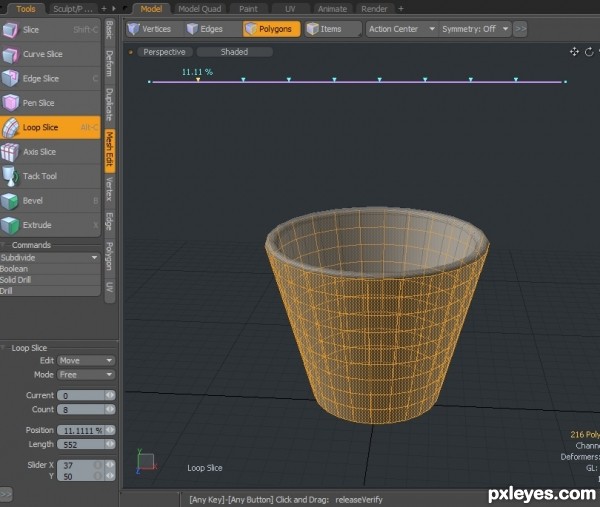

Loop slice the mesh ready for the handle.

Creation of Morning Glory: Step 5

step 6 of 25

Uniform scale on the two selected edges.

Creation of Morning Glory: Step 6

step 7 of 25

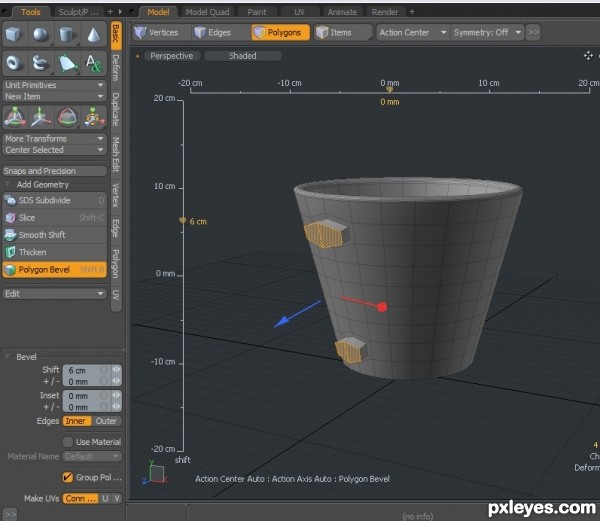

Start of the handle polygon bevel, group selected and extended.

Creation of Morning Glory: Step 7

step 8 of 25

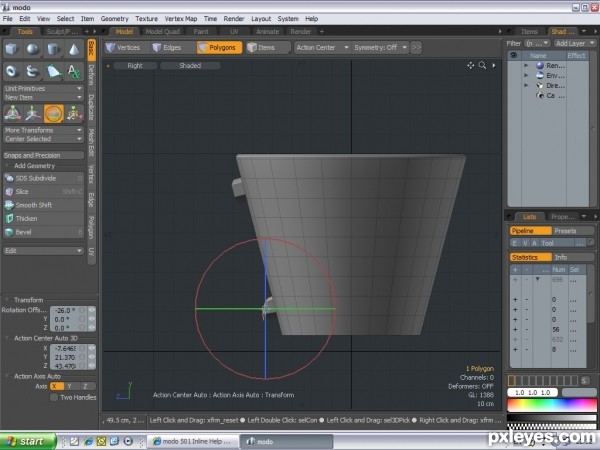

Rotate the two front facing polygons top and bottom, 45 and -45 degrees on the z axes.

Creation of Morning Glory: Step 8

step 9 of 25

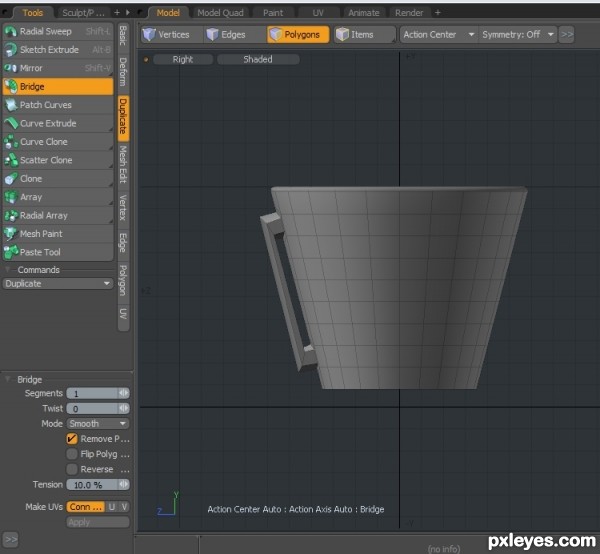

Bridge tool, set at 1 segment to start with.

Creation of Morning Glory: Step 9

step 10 of 25

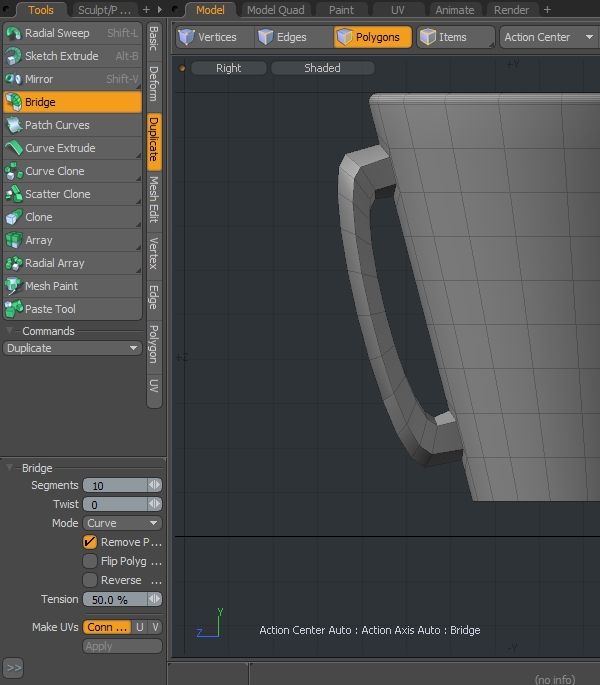

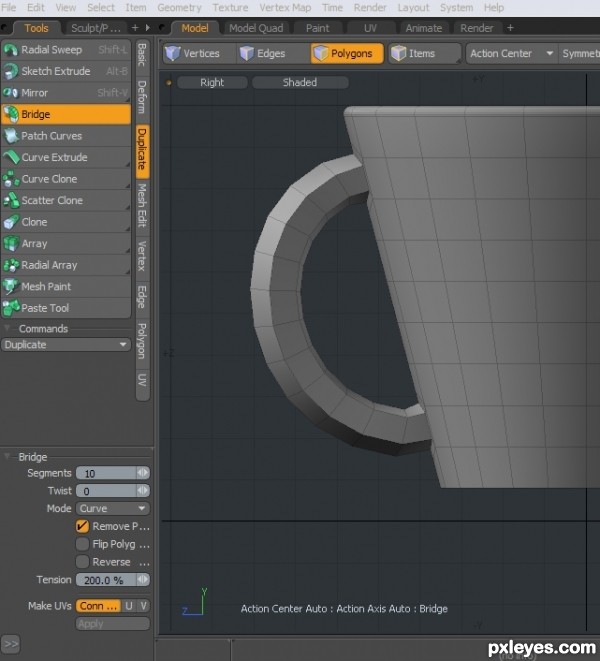

Added more segments to the handle mesh and change the mode to curve.

Creation of Morning Glory: Step 10

step 11 of 25

Tension in the mesh is decreased to achieve the bend in the handle.

Creation of Morning Glory: Step 11

step 12 of 25

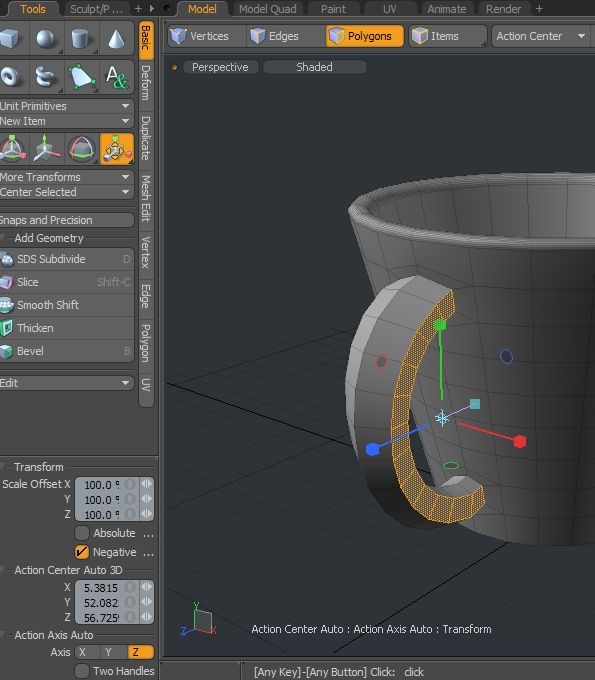

Uniform scale is used on the two side of the handle for a more pleasing shape when transformed in to a S.D.S.

Creation of Morning Glory: Step 12

step 13 of 25

The cup has now been changed from polygons to a Level 1 S.D surface.

Creation of Morning Glory: Step 13

step 14 of 25

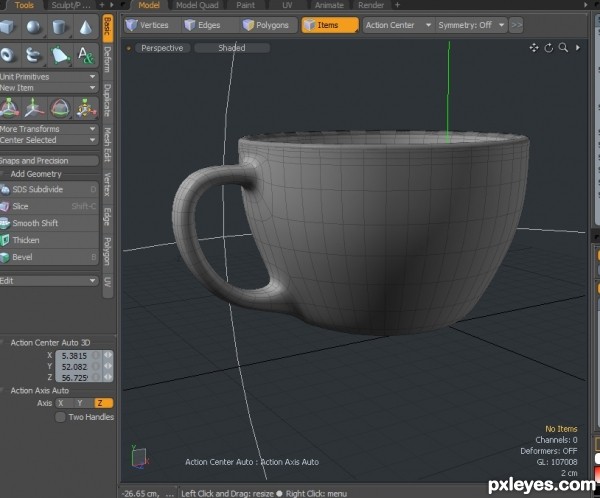

An hour or so later...and after much manipulating the finished cup.

Creation of Morning Glory: Step 14

step 15 of 25

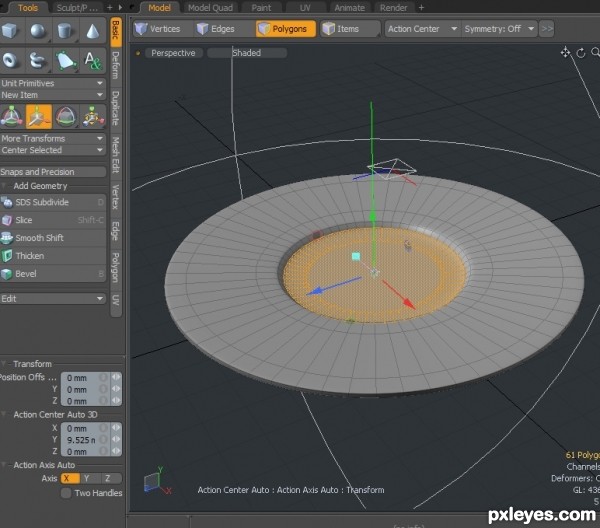

The saucer made from the top of a Standard cylinder.
Tools used are: Polygon bevel, Edge bevel, thicken tool and edge slice.

Creation of Morning Glory: Step 15

step 16 of 25

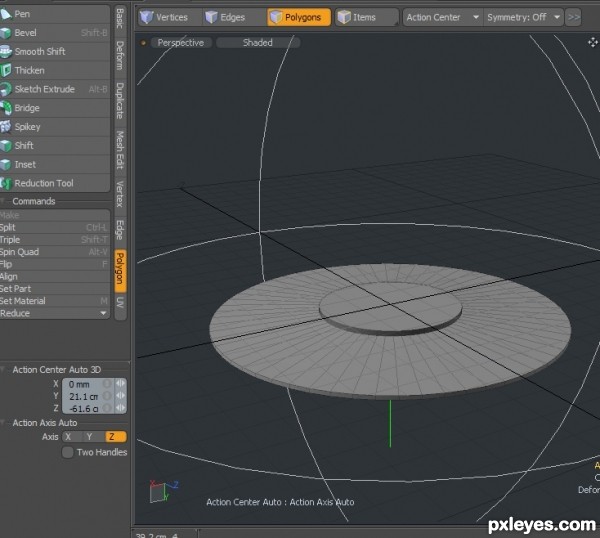

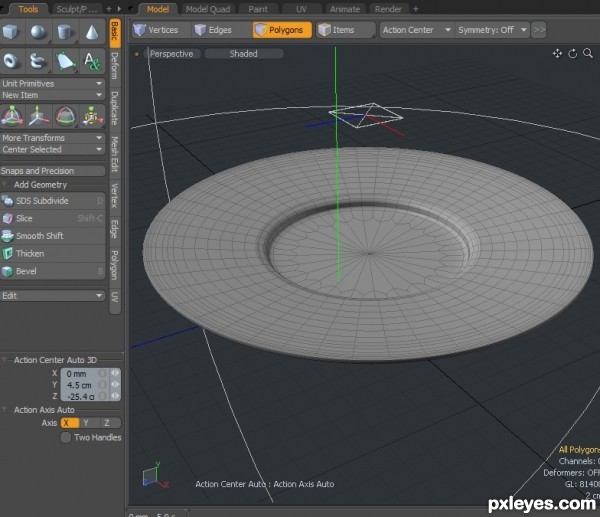

Top of the saucer.

Creation of Morning Glory: Step 16

step 17 of 25

End result.

Creation of Morning Glory: Step 17

step 18 of 25

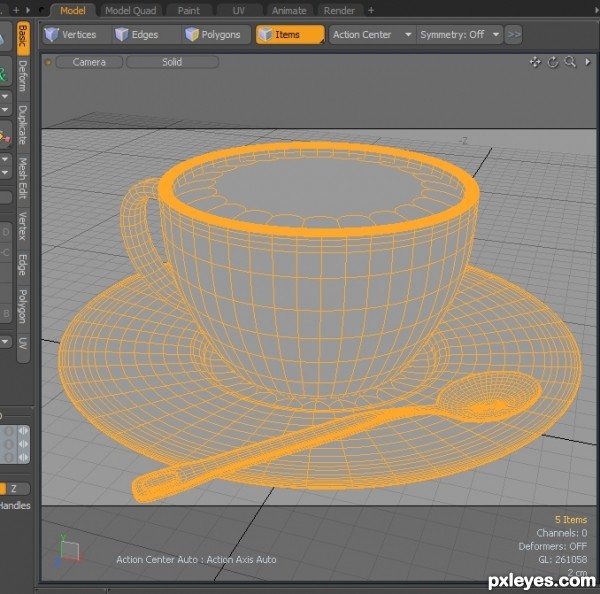

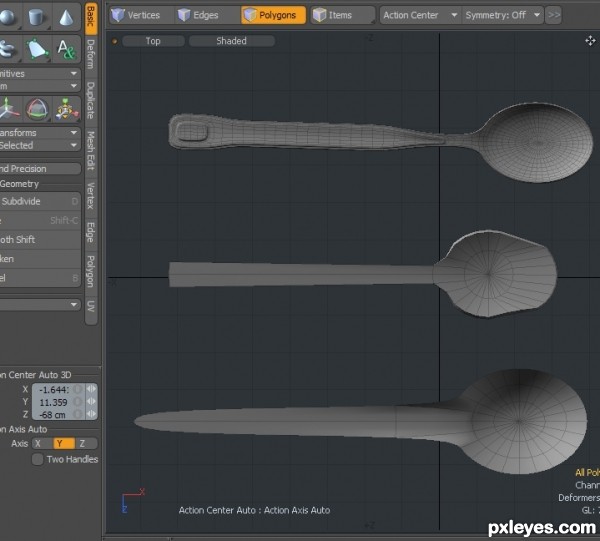

Evolution of the Spoon.

Creation of Morning Glory: Step 18

step 19 of 25

Scene setup later changed my mind on the spoon position.

Creation of Morning Glory: Step 19

step 20 of 25

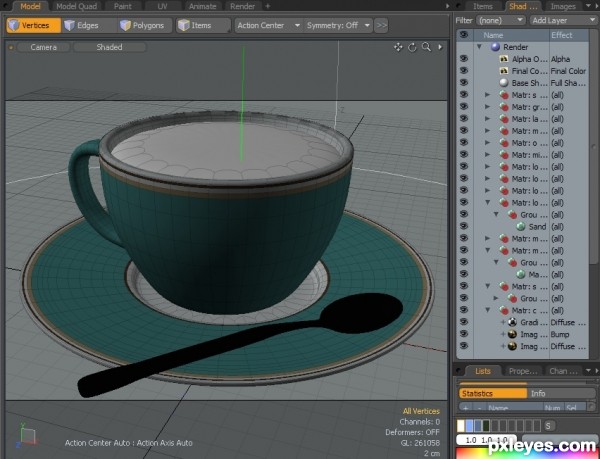

Materials added.

Creation of Morning Glory: Step 20

step 21 of 25

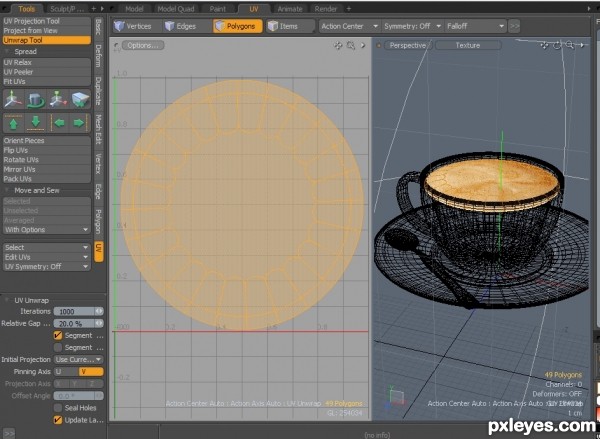

U.V. map. Could have left it like this as it is perfectly ok but I like to have a bit more control over the textures so this was exported from the application by E.P.S. (Encapsulated PostScript) and the source is then overlaid on to the exported U.V. saved, then imported back in to the application.

Creation of Morning Glory: Step 21

step 22 of 25

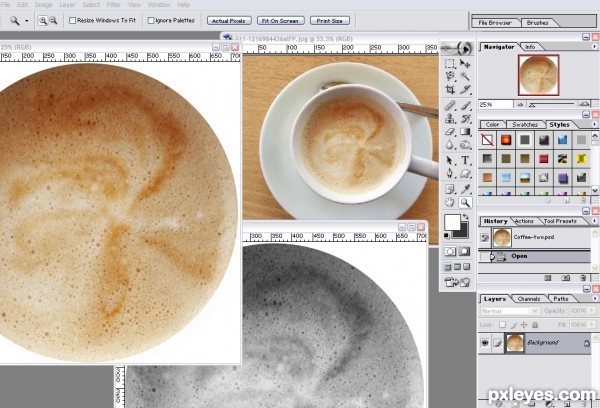

Cut the centre out of the original image and overlaid it on to the imported E.P.S. and created the bump map.

Creation of Morning Glory: Step 22

step 23 of 25

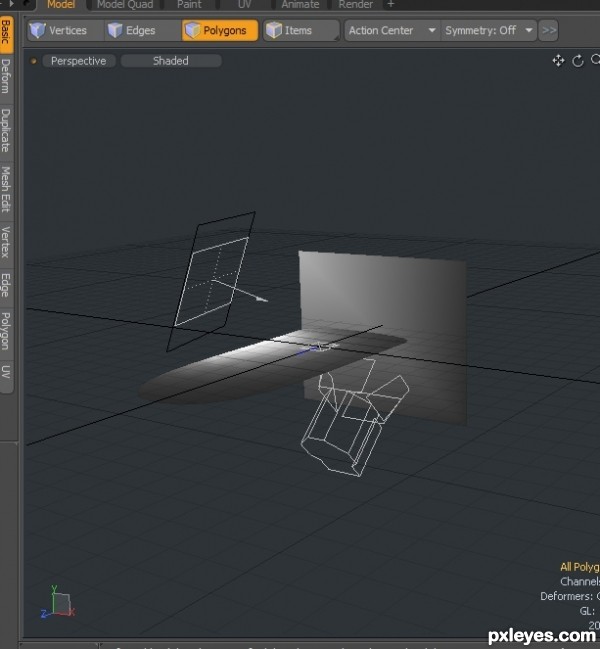

Lighting setup.

Creation of Morning Glory: Step 23

step 24 of 25

Ambient Occlusion render never used it in the end was not necessary.

Creation of Morning Glory: Step 24

step 25 of 25

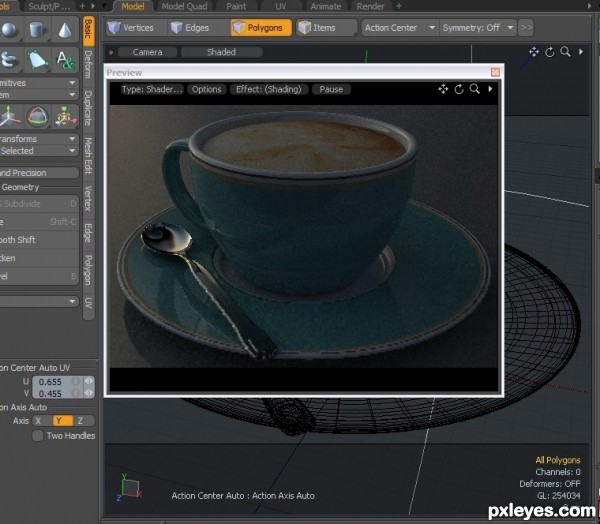

Final render preview done :)

Creation of Morning Glory: Step 25

Final result

Creation of Morning Glory: Final Result
