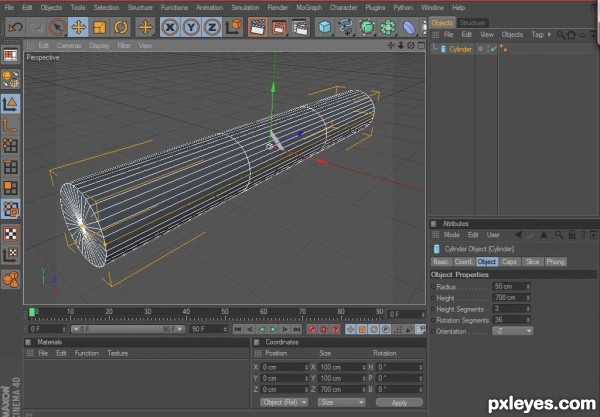

I first created a cyclinder...
step 1 of 9
step 2 of 9

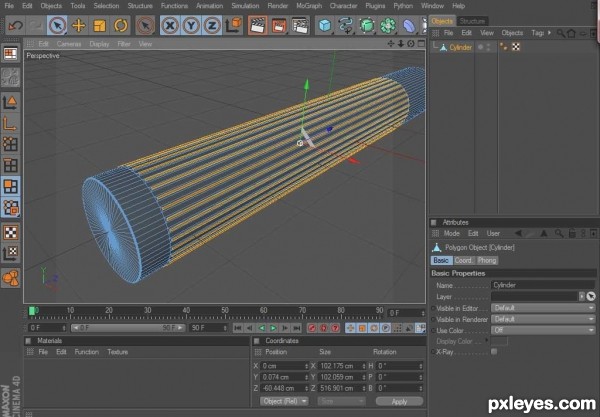

I then added more faces and then, selecting certain ones, I extruded them...
step 3 of 9

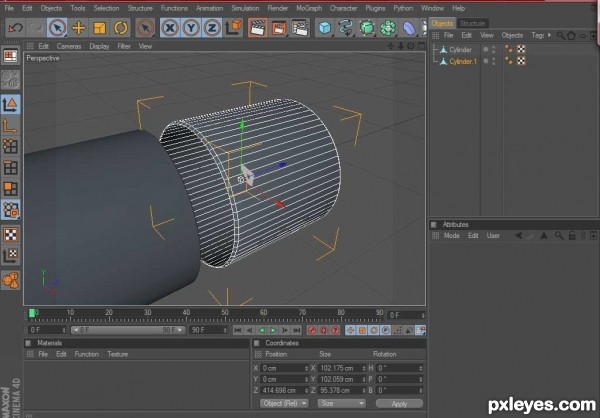

I then copied the original cylinder and used it for the Keyring/ Battery cover...
step 4 of 9

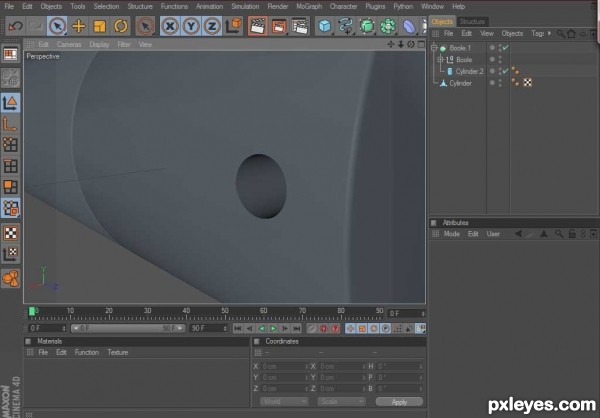

I then made another cylinder and used it to create a Boolean for the KeyRing to go through...
step 5 of 9

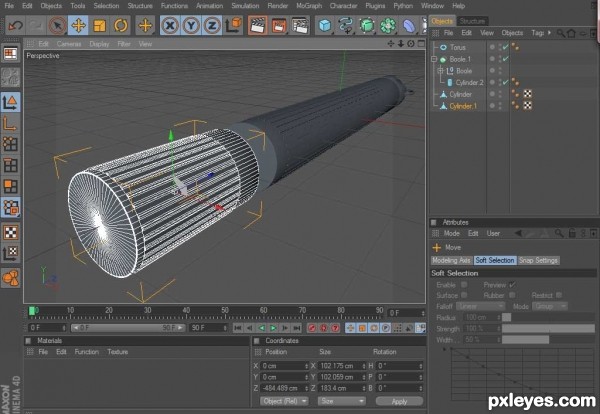

Next I again copied the original cylinder and deleted the front face, this is going to be used for the Bulb casing...
step 6 of 9

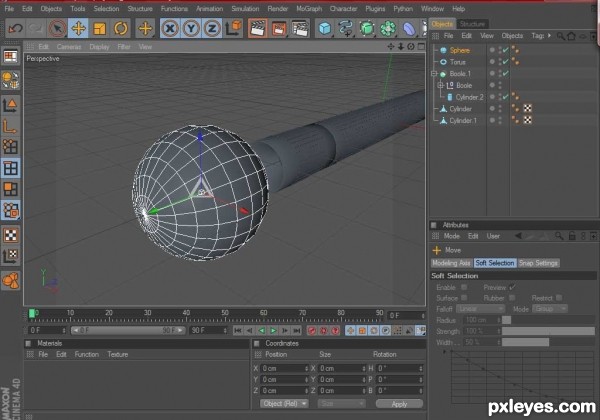

I created a sphere and turned it 90o, I know that it's not really going to be seen so I don't have to make the shape at all.
I just reduce the size and stretch it a little.
This is going to be the Bulb...
I just reduce the size and stretch it a little.
This is going to be the Bulb...
step 7 of 9

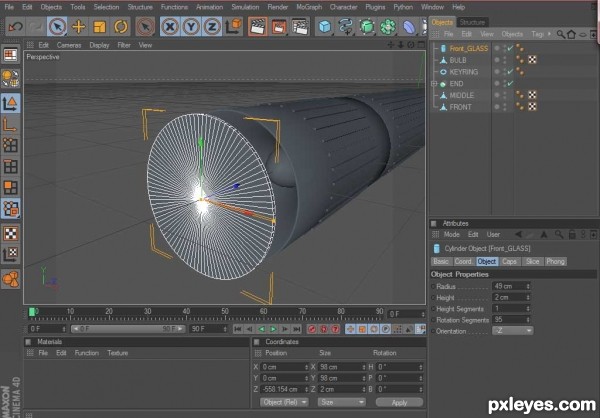

A make another cyclinder and make it really thin, this is for the Glass on the front of the FlashLight...
step 8 of 9
I make some text using the MoText tool
"Made in USA"
it doesn't actually say this on the Mag_Lite, but I didnt want a perfect copy.
Anywho, After I created the text, I placed it into a wrap deformer and bent it around the cylinder...
"Made in USA"
it doesn't actually say this on the Mag_Lite, but I didnt want a perfect copy.
Anywho, After I created the text, I placed it into a wrap deformer and bent it around the cylinder...
step 9 of 9
I then added some basic color, with reflection and some lighting effects...
Done.
Done.

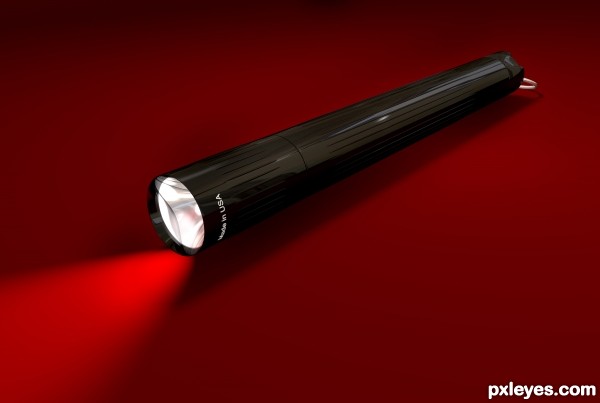

Final result
