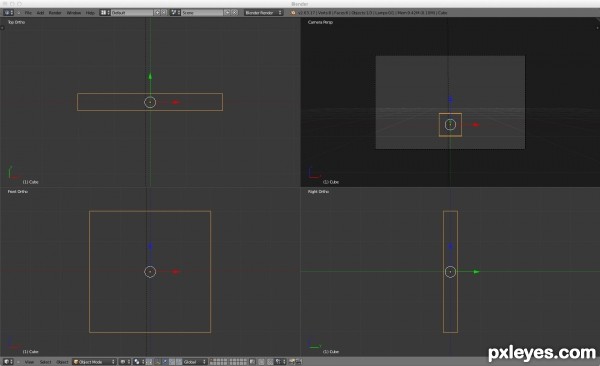

Create a cube and make it thinner
step 1 of 15
step 2 of 15

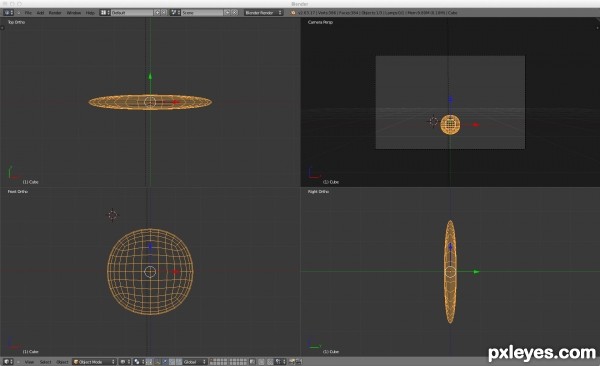

Add an "Subdivision Surface" modifier on it, with "View:3 / Render:3", don't apply for now
step 3 of 15
Switch to edit-mode, an add "Loop Cut & Slide (ctrl+R)" horizontally...
step 4 of 15
...and vertically
step 5 of 15

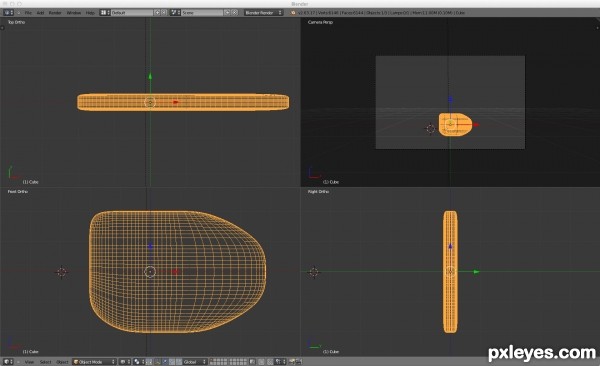

Shape it like this:
step 6 of 15

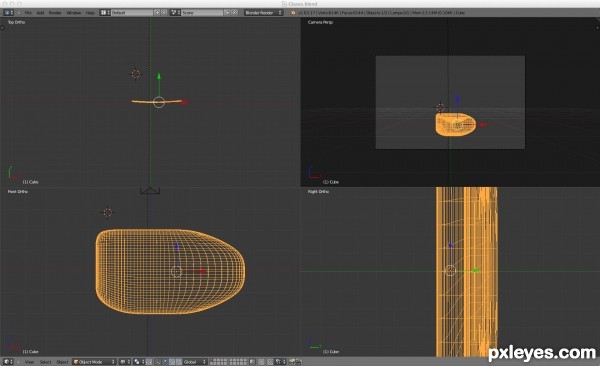

Bend it a bit
step 7 of 15

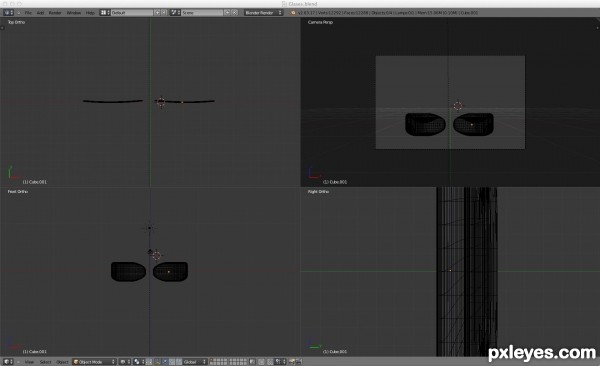

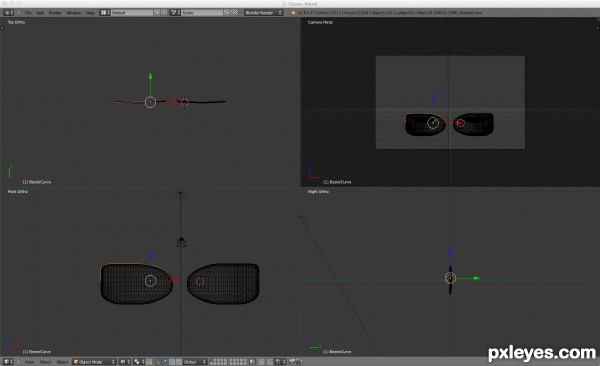

Mirror the Glass...
step 8 of 15
Create a "Bezier curve" and shape it like this:
step 9 of 15

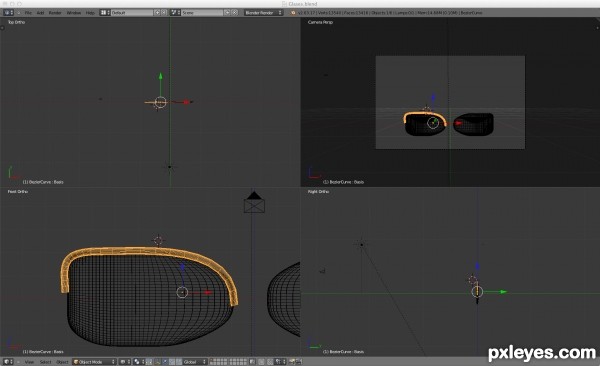

Add a "Bezier circle" and set it as "Bevel object". The circle will follow the curve which acts as a path:
step 10 of 15

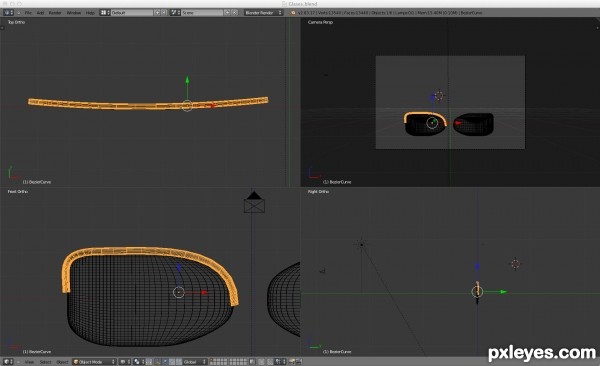

Bend this one as much ass the Glass
step 11 of 15

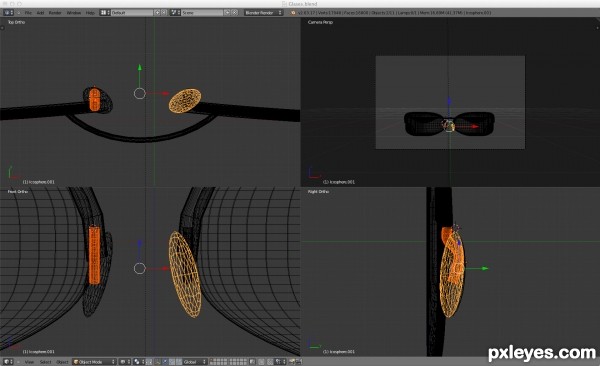

For the details of the nose-thing, another "Bezier curve" and a long sphere will do it
step 12 of 15

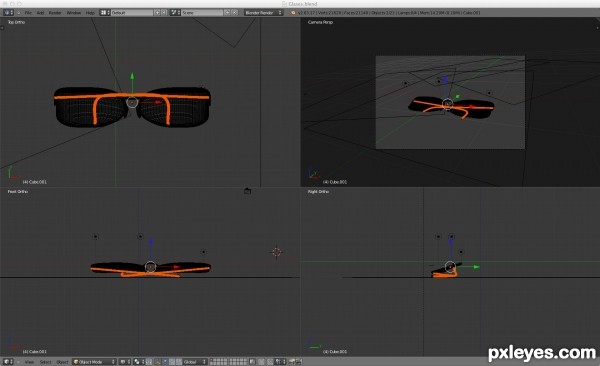

For the arms, use a "Bezier curve" again, and put a long sphere for the rubber part at the end
step 13 of 15

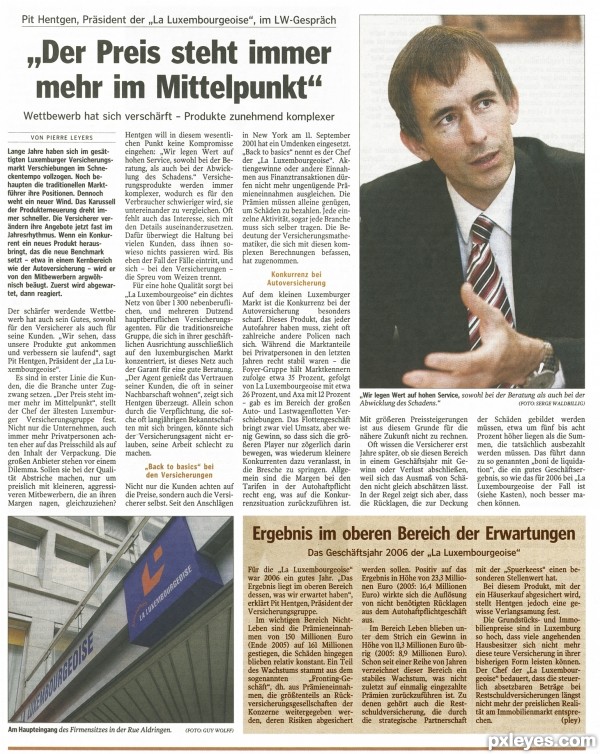

As background, I've scanned a Newspaper article:
step 14 of 15

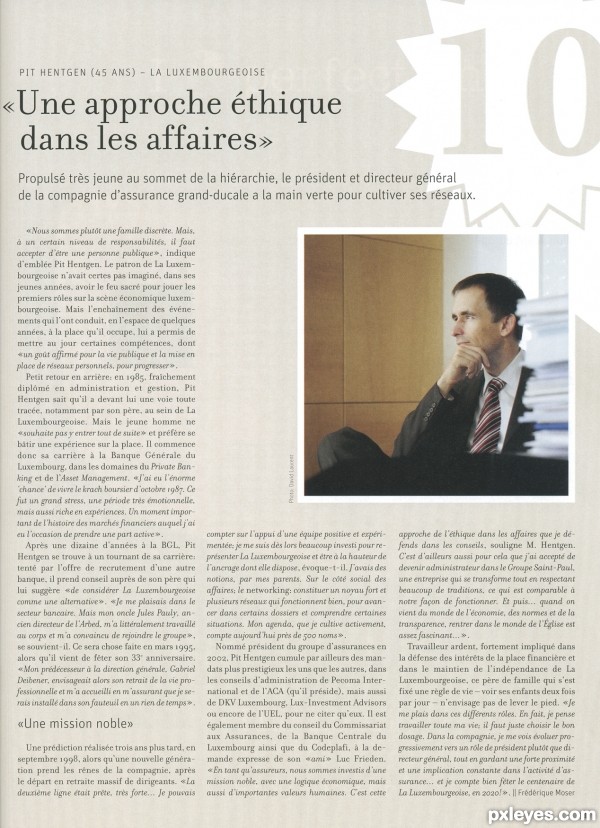

I only scanned 2, this is the second, whichi I duplicated:
step 15 of 15
And here, the final image:
For the materials, the glass is:
Transperency on, Raytrace, Alpha: 0.01, IOR: 2.2, Depth: 2
The plastic of the nose-thing is Transperency on, Z Transperence only
The chassis is a basic metallic material with little mirror reflection.
As light, I positioned 3 lights to get a nice reflection in the glass... just experiment around, to get an result...
For the materials, the glass is:
Transperency on, Raytrace, Alpha: 0.01, IOR: 2.2, Depth: 2
The plastic of the nose-thing is Transperency on, Z Transperence only
The chassis is a basic metallic material with little mirror reflection.
As light, I positioned 3 lights to get a nice reflection in the glass... just experiment around, to get an result...
Final result
