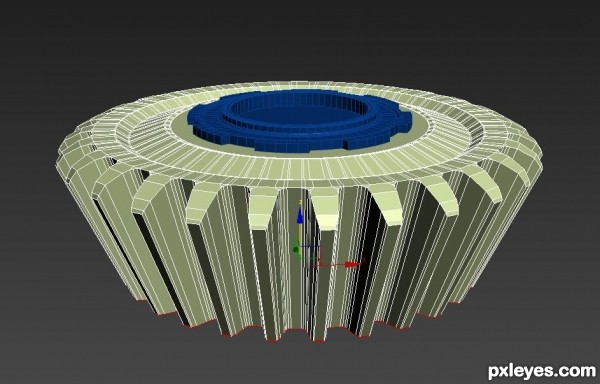

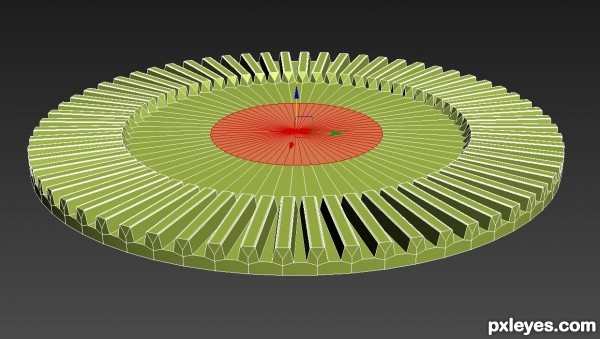

for the wheels i started with a cylinder - bevel+chamfer
step 1 of 14
step 2 of 14

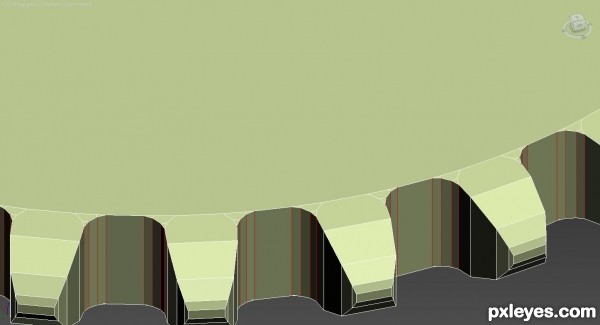

i made a mistake and corrected by scaling bottom polygons on the z axis
step 3 of 14

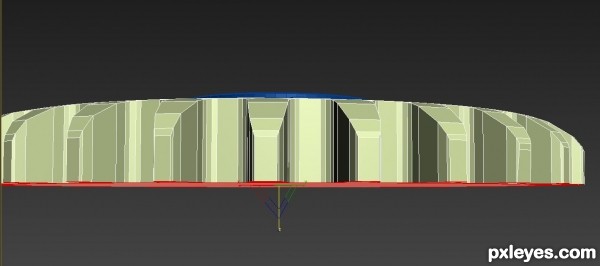

like so...
step 4 of 14

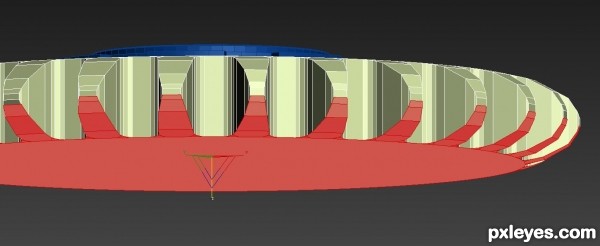

moved down and scaled...
step 5 of 14
for the next wheel i made a cylinder set edges and extrude them like in the image
step 6 of 14

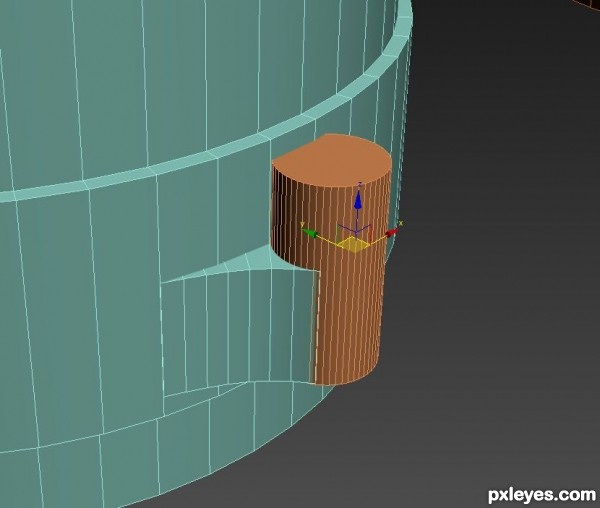

starting to add few elements
step 7 of 14

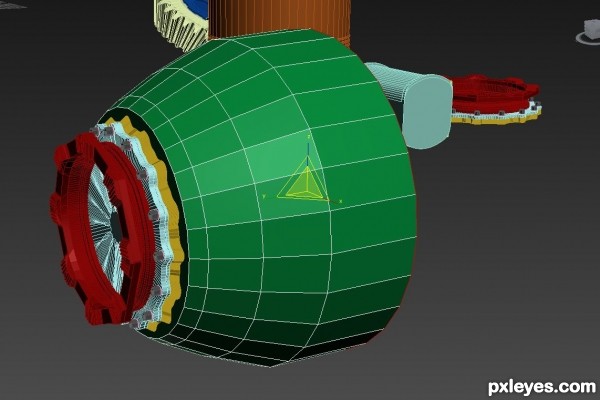

started the nose/head of the engine
step 8 of 14

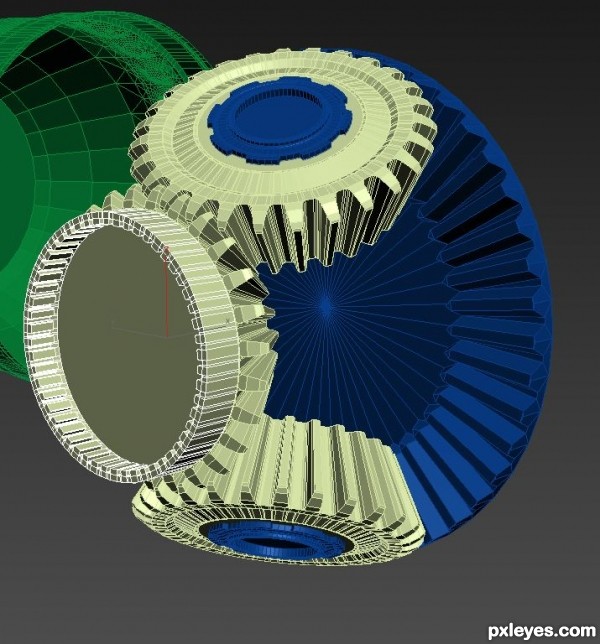

put the pieces togheter
step 9 of 14

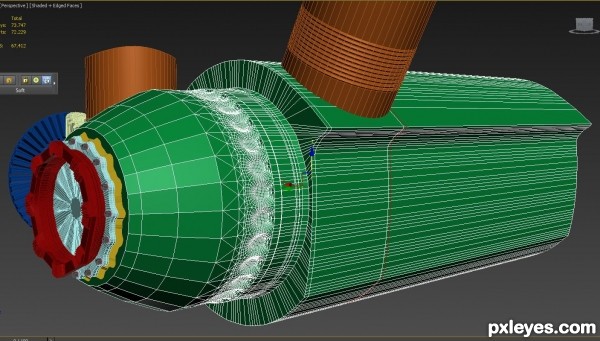

main form for the engine box
step 10 of 14

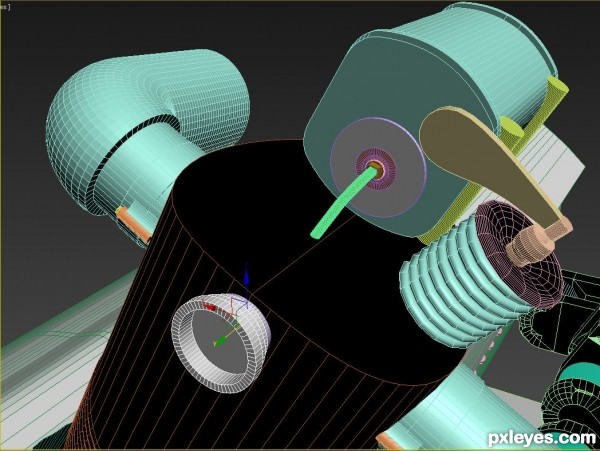

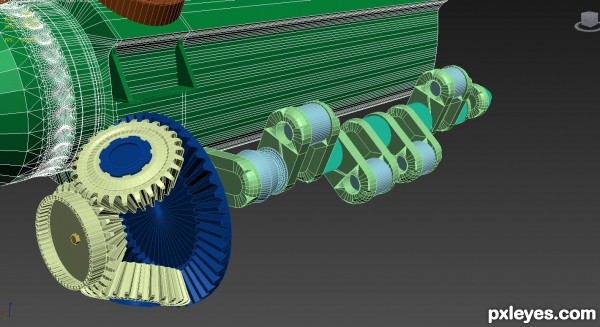

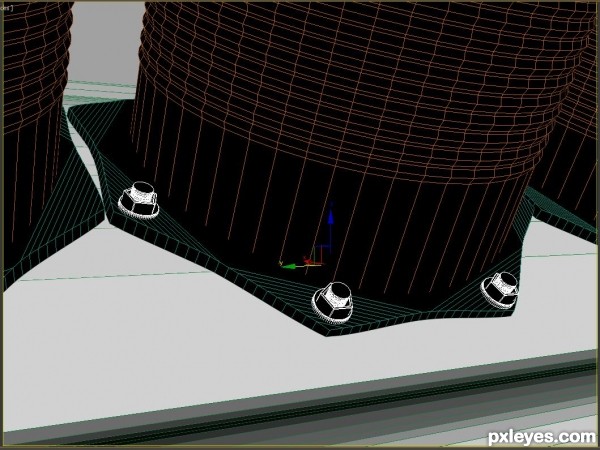

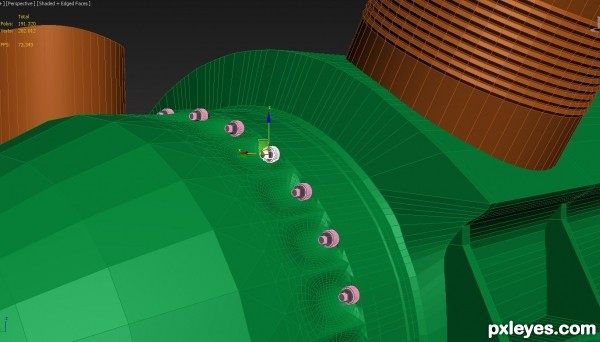

adding more stuff....main modeling techniques: inset extrude, bevel, chamfer, connect....and others
step 11 of 14
step 12 of 14
step 13 of 14
step 14 of 14

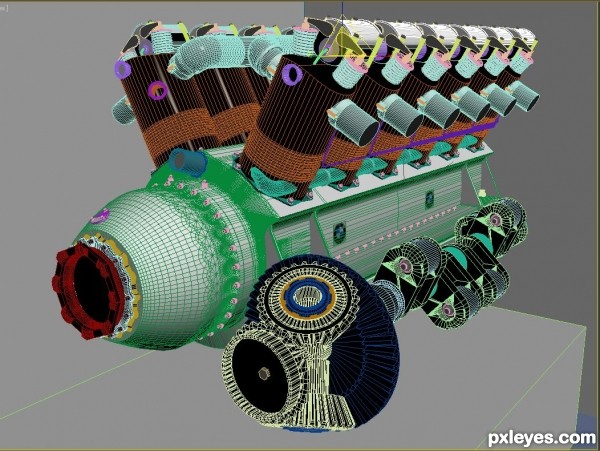

Final result
