modelled in max
Turbosmoothed using smoothing groups
mr daylight and physical sky
extruded text for C-2012 on the side
Turbosmoothed using smoothing groups
mr daylight and physical sky
extruded text for C-2012 on the side

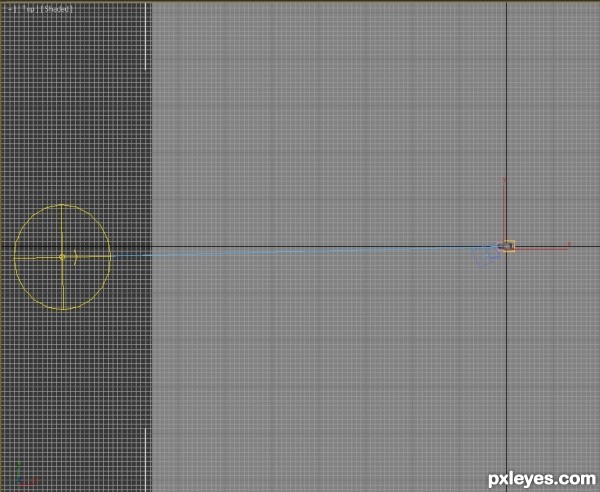

step 1 of 7

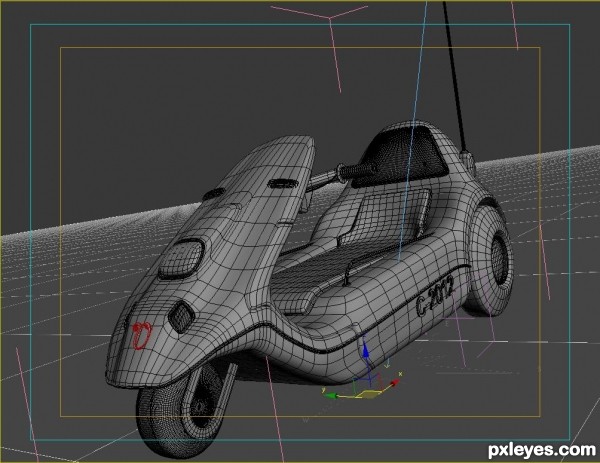

step 2 of 7
renderable splines for trim and cables

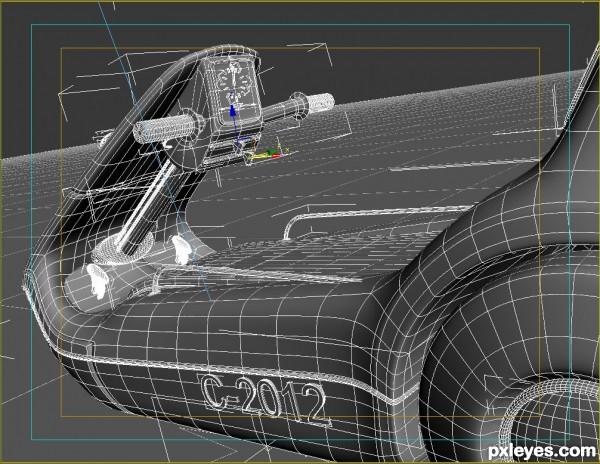

step 3 of 7
extrude edges to build up body of c2012

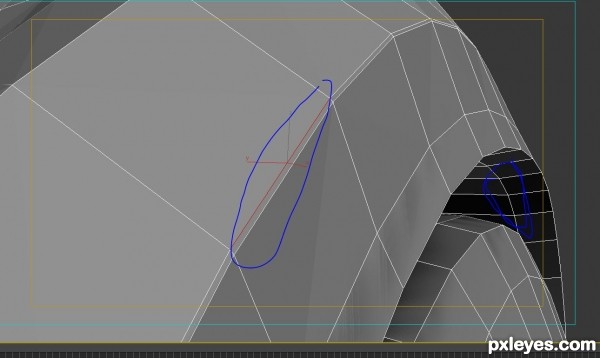

step 4 of 7
edges chamfered to create panel seams
and underside given a seperate smoothing group
and underside given a seperate smoothing group

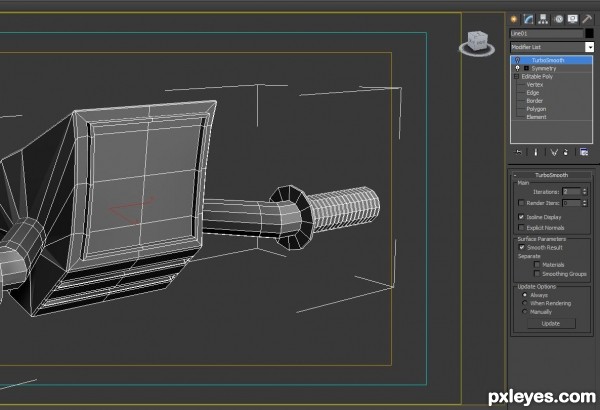

step 5 of 7
symetry and turbo smooth modifiers added

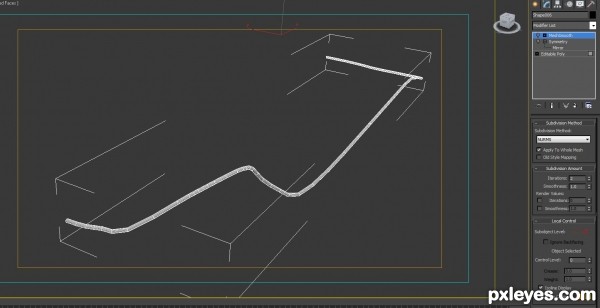

step 6 of 7
trim created by selecting edges - create shape
converting to edit poly and adding symetry and meshsmooth
converting to edit poly and adding symetry and meshsmooth
step 7 of 7
rendered in vray with vray camera and vray sun
Final result
