A Work in Progress: Gamefreak Username Logo

This guide was made for entry:
Gamefreak Username Logo
In Contest:
second chance

step 1 of 6

Ok, in this step by step guide, I'll show you anyone can make photorealistic works! You just need a bit of patience and common sense, witch I'm sure you can find pretty easily! ;)

Ok, first step:

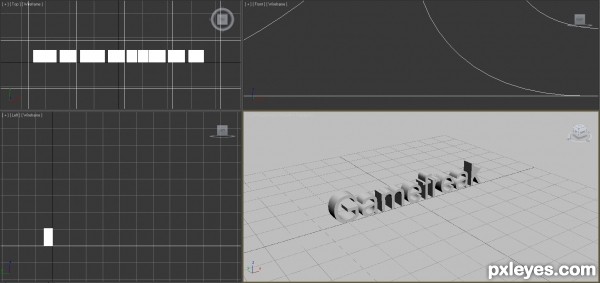

Start by making a plane and desired 3D text. I'm sure everyone can do that, if not, there are tutorials on the net about how to make 3D Text.

step 2 of 6

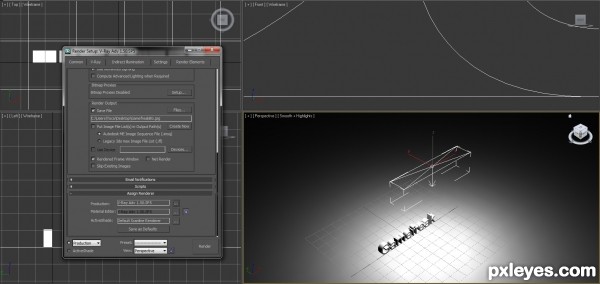

Switch to VRay renderer (if you have VRay).

To switch to VRay in 3D's Max, go to:

Rendering>Render Setup> Scroll Down and open the tab "Assign renderer", click Browse of the first field and pick Vray.

Then add a VRay light.

step 3 of 6

Open Materials Editor by pressing M, Pick a material (ball) And down, right from the name of the material, click the button "Standard", A list opened, pick VRay Mtl.

Press a button next to diffuse and pick Bitmap, this allows us to apply a texture to our plane. Press the "Go to Parent" Button above "Bitmap" button.

Then go down to Maps and apply the same ground texture (bricks) we used for diffuse, apply it to bump. Increase the bump to 60.

sources used for this step:

: source

step 4 of 6

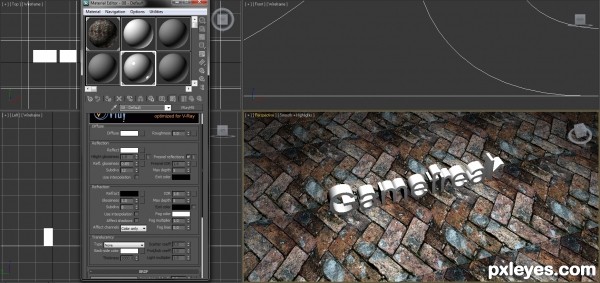

Make a plastic material for our letters!

Here is the picture so you can copy the options for the material. It's also VRay Mtl.

step 5 of 6

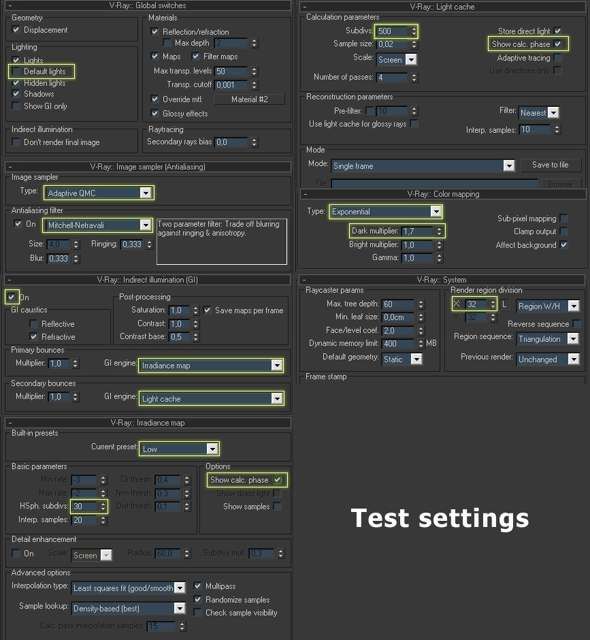

And here are the render elements If you want to test your work.

sources used for this step:

1: source 1

step 6 of 6

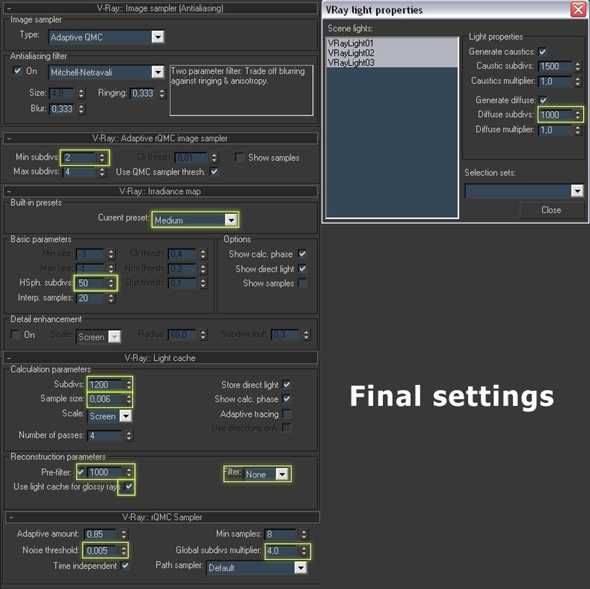

And... Here are the final render settings.

Make sure you have test settings applied, before applying final settings, because there are already some things set correctly in the test settings.

sources used for this step:

2: source 2

Final result
