A Work in Progress: E-garbage



This guide was made for entry:
E-garbage
In Contest:
future dustbins


step 1 of 10

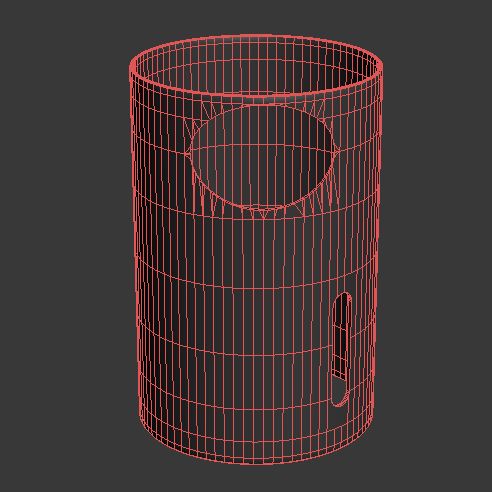

I used a cylinder for the body of the dustbin. I then used boolean to create the holes and made it smooth with turbosmooth.

Creation of E-garbage: Step 1

step 2 of 10

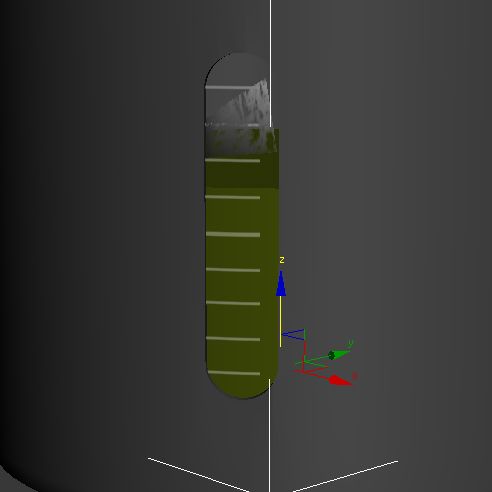

Added a liquid inside and made some trash and put inside (barely noticable in the render).

Creation of E-garbage: Step 2

step 3 of 10

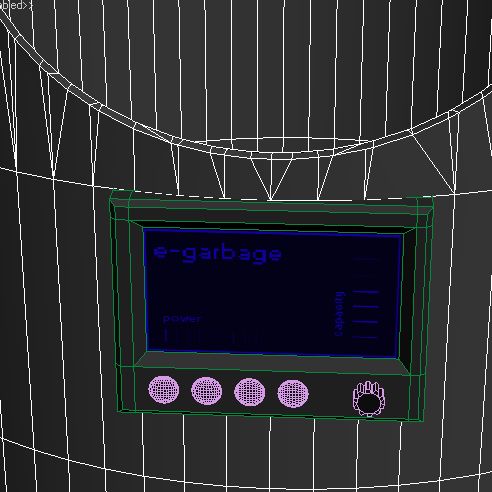

Simple box, spheres and an extruded cylinder was used here. Display image was made in photoshop, check later steps.

Creation of E-garbage: Step 3

step 4 of 10

The wall socket, simple box and used boolean with these edited cylinders

Creation of E-garbage: Step 4

step 5 of 10

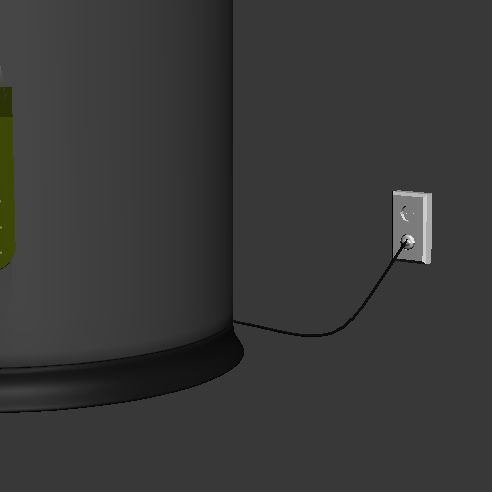

The cable was created from a spline and with an modified box at the end (for the wall socket)

Creation of E-garbage: Step 5

step 6 of 10

Wall and floor created with planes. The top + bottom of the dustbin was created from cylinders, edited in edit poly and smoothened. I used one of the original HDR images that comes with the program, and put it as environment.

Creation of E-garbage: Step 6

step 7 of 10

View from the camera. The two lights in the scene were two free rectangle photometric lights

Creation of E-garbage: Step 7

step 8 of 10

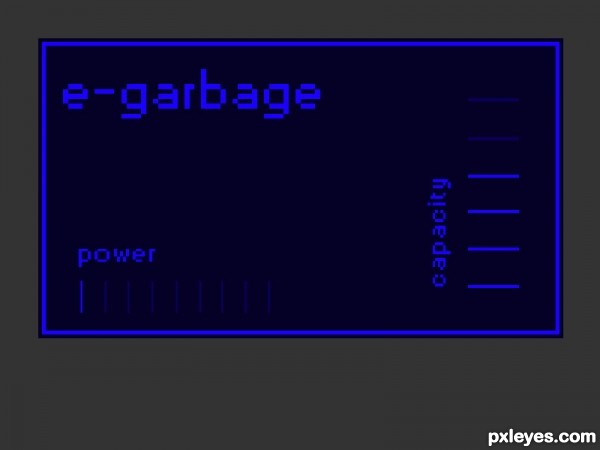

The display, created with photoshop.

Creation of E-garbage: Step 8

step 9 of 10

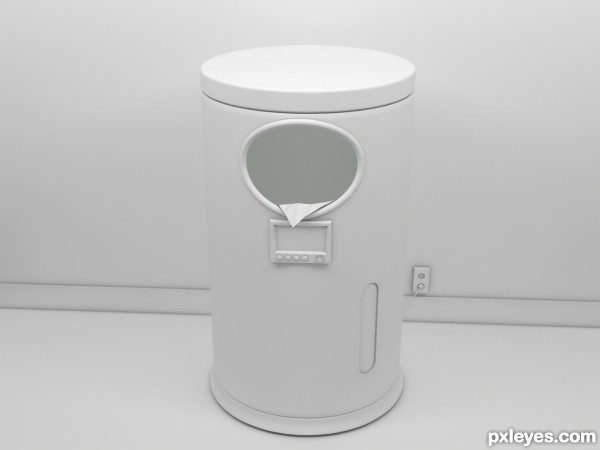

Render with ambient occlusion on. Composed with the render in photoshop.

Creation of E-garbage: Step 9

step 10 of 10

The materials I used in this scene.

Creation of E-garbage: Step 10

Final result

Creation of E-garbage: Final Result
