A Work in Progress: Dark Moves



This guide was made for entry:
Dark Moves
In Contest:
chess pieces


step 1 of 23

All of the pieces are made with basic shapes, Tubes, Cones, Torus, Spheres, the first piece I made was the King

Creation of Dark Moves: Step 1

step 2 of 23

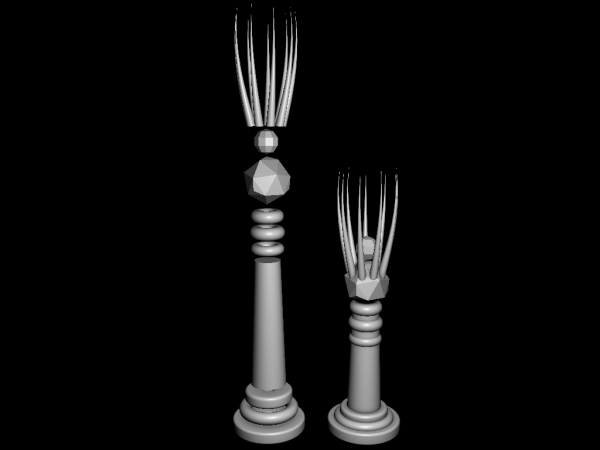

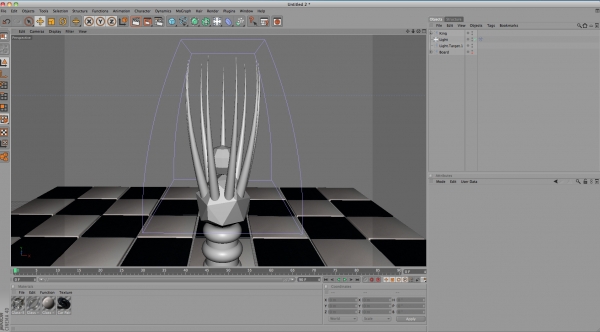

The crown was made with a stretched cone which was placed in an array to make copies. I then used a taper deformer to give the crown its curve inwards

Creation of Dark Moves: Step 2

step 3 of 23

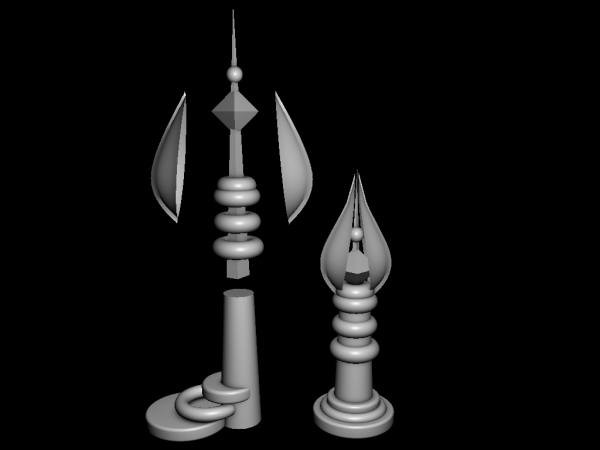

The next piece was the Queen, I wanted the queen to be similar to the king and somehow make it more feminine looking.

Creation of Dark Moves: Step 3

step 4 of 23

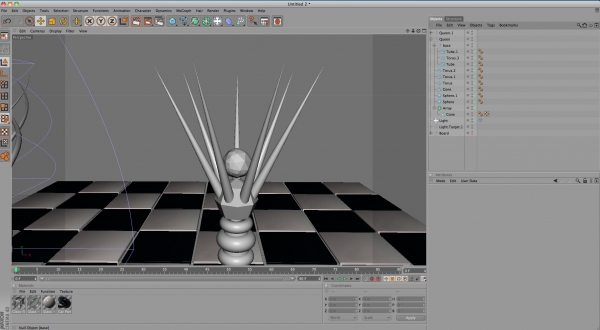

Again the crown was made with a cone placed in an array.

Creation of Dark Moves: Step 4

step 5 of 23

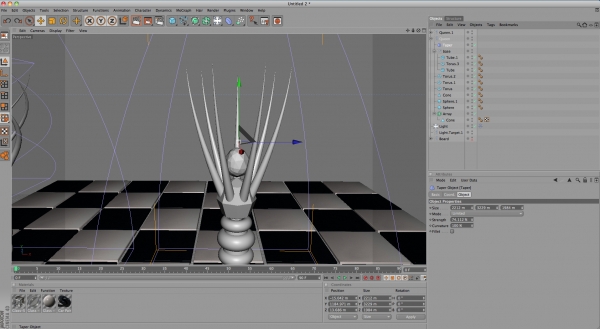

A taper deformer was added.

Creation of Dark Moves: Step 5

step 6 of 23

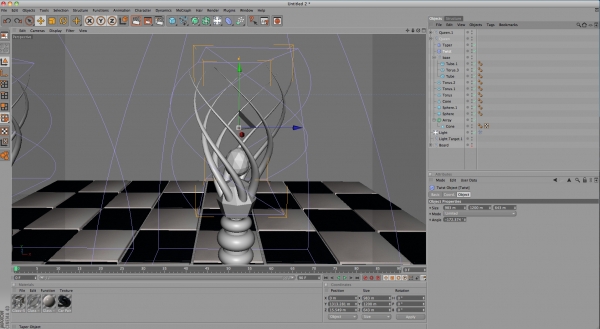

Then a twist deformer was added.

Creation of Dark Moves: Step 6

step 7 of 23

The next piece was the Knight and I wanted a horses head and wanted to try modelling it with reference pics.

Creation of Dark Moves: Step 7

step 8 of 23

This is the pic I chose for my side view. Thank you to feelidae

Creation of Dark Moves: Step 8
sources used for this step:

step 9 of 23

This is the pic I chose for my front view. Thank you to amcmillan

Creation of Dark Moves: Step 9
sources used for this step:

step 10 of 23

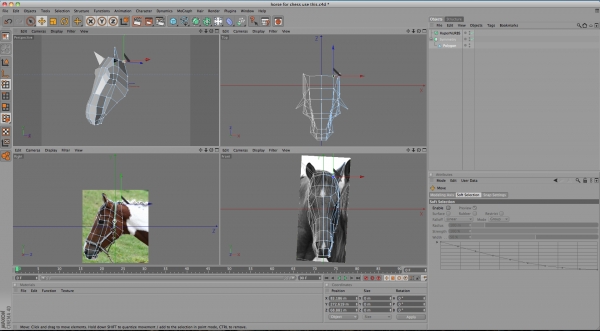

I figured that horses are of a similar build, I just had to get the heads roughly in the right position and I modelled with individual polygons, this was my first attempt at this type of modelling and it did take quite a few hours but I was quite pleased with the result.

Creation of Dark Moves: Step 10

step 11 of 23

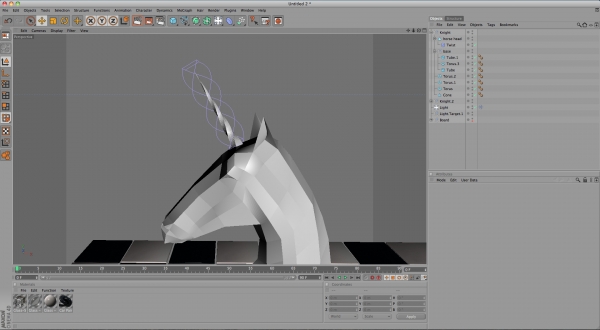

I wanted my horse to resemble a Unicorn so I created a spike and added a twist deformer

Creation of Dark Moves: Step 11

step 12 of 23

Next was the Rook, the merlons were created with a tube and some of the faces were extruded.

Creation of Dark Moves: Step 12

step 13 of 23

I wanted my Bishop to have a Bishop's Mitre

Creation of Dark Moves: Step 13

step 14 of 23

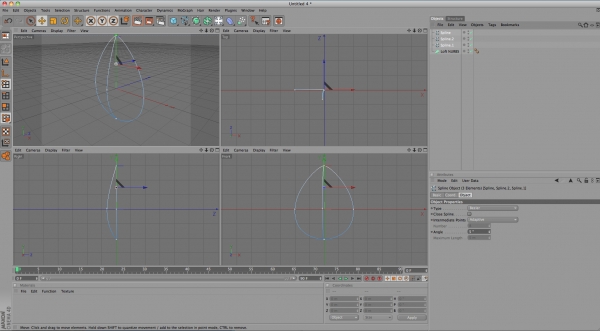

The Bishop's Mitre was created with 3 splines in the shape of a leaf with the middle spline curving outward.

Creation of Dark Moves: Step 14

step 15 of 23

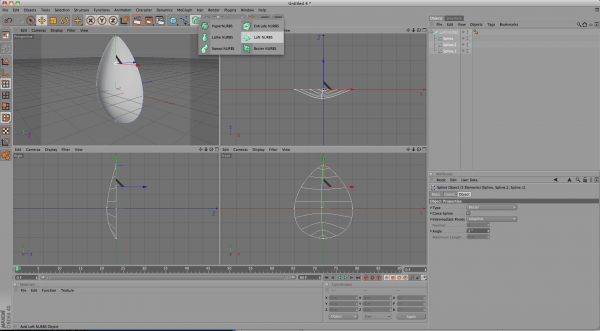

The 3 splines were placed in a loft nurbs tool to form a half oval which will be one half of my Bishop's Mitre.

Creation of Dark Moves: Step 15

step 16 of 23

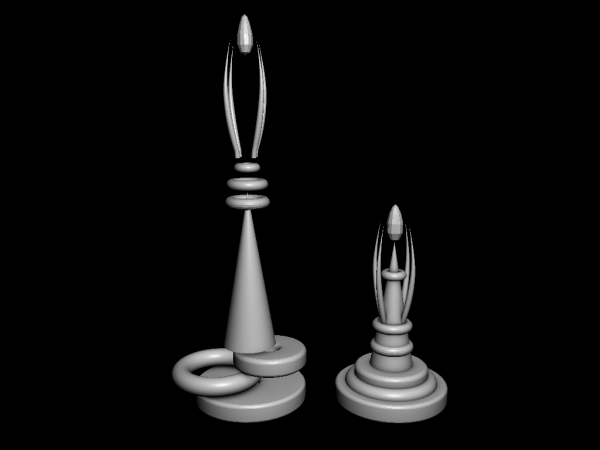

My Pawn was the last piece to be made the arms were made in the same way as the King and Queens crowns using a cone, array and deformer.

Creation of Dark Moves: Step 16

step 17 of 23

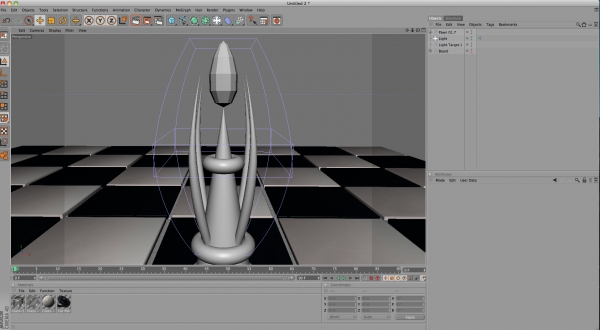

This is the deformer influencing the arms and also the sphere.

Creation of Dark Moves: Step 17

step 18 of 23

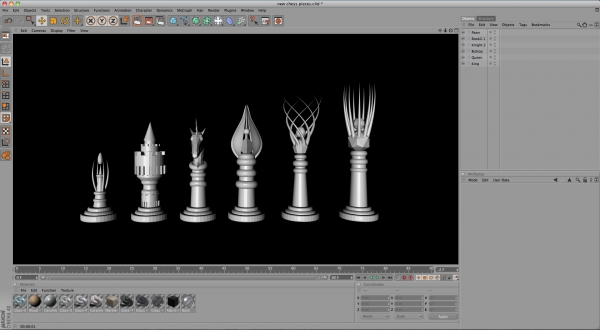

This is the lineup to give you a sense of size for each piece.

Creation of Dark Moves: Step 18

step 19 of 23

The board was created with individual cubes and placed ensuring even spacing around. I chose two materials for light and dark, a glass type and a painted metal type.

Creation of Dark Moves: Step 19

step 20 of 23

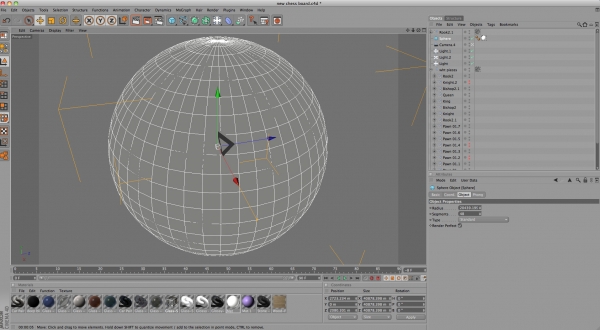

I placed 3 lights in my scene and also used a sphere with an illuminance material to further offer more light to my pieces and board.

Creation of Dark Moves: Step 20

step 21 of 23

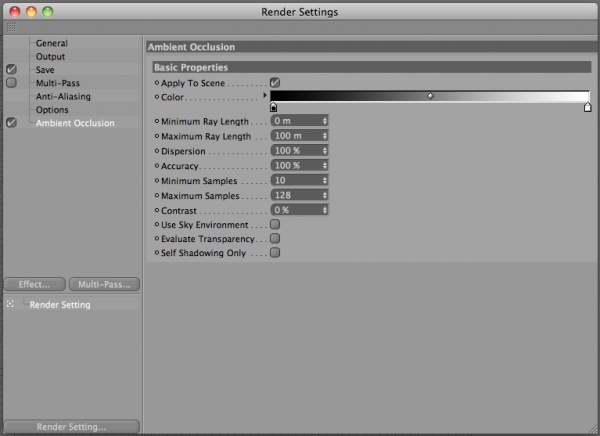

I tried out rendering with the Ambient Occlusion then the Global Illumination effects and liked the result of the Ambient Occlusion, so this is what I opted for

Creation of Dark Moves: Step 21

step 22 of 23

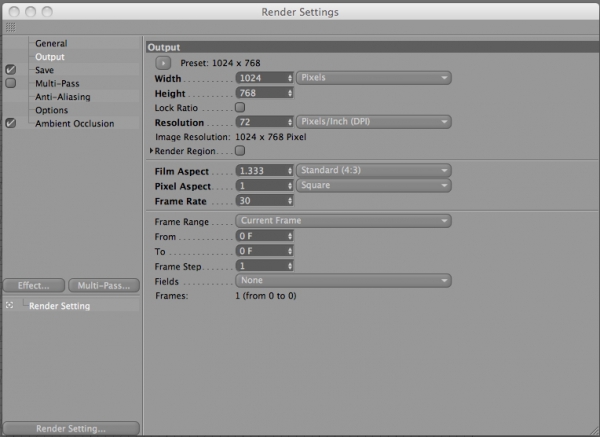

I set my size and resolution and rendered my scene to the picture viewer. 13 hours later Bob's your Uncle. There are some things that I would like to change but unfortunately the rendering time is a right killer.

Creation of Dark Moves: Step 22

step 23 of 23

another view

Creation of Dark Moves: Step 23

Final result

Creation of Dark Moves: Final Result
