A Work in Progress: Diamond - Brilliant round cut



This guide was made for entry:
Diamond - Brilliant round cut
In Contest:
crystal


step 1 of 16

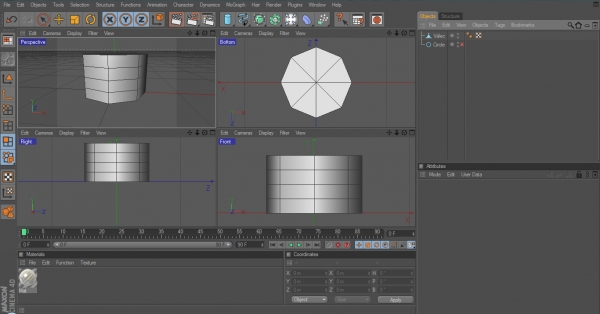

first add primitive - cylinder with 8 rotation segments, 1 cap segment and 4 height segments, with measures radius=50 and height=60.

Make it editable(ctrl+C), and use optimize function

Creation of Diamond - Brilliant round cut: Step 1

step 2 of 16

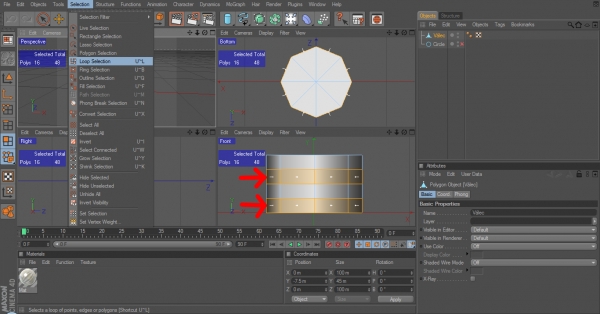

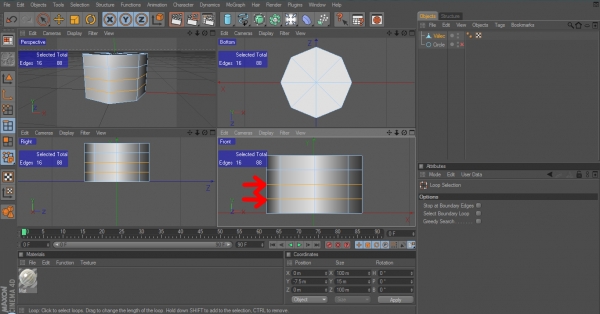

with the loop selection tool select the two loopsas depicted, and...

Creation of Diamond - Brilliant round cut: Step 2

step 3 of 16

...the two polygon loops, as depicted here. Next...

Creation of Diamond - Brilliant round cut: Step 3

step 4 of 16

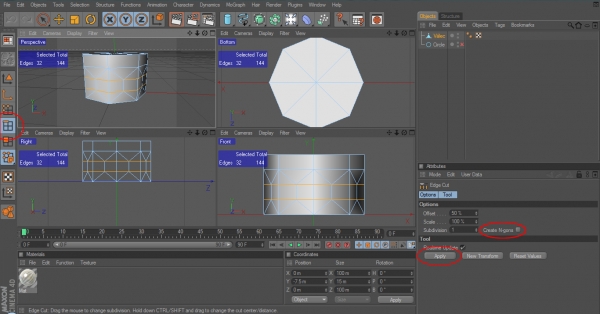

...click back to line editing and choose func. edge cut(m~f), check, if Create N-Gons is unchecked and click apply. When there are not created triangles on the loops above and below the cutted lines, then click poly editing(under the line editing) button, here we have selected both loops, now we just choose triangulate(after right click), and we're done with this step.

Creation of Diamond - Brilliant round cut: Step 4

step 5 of 16

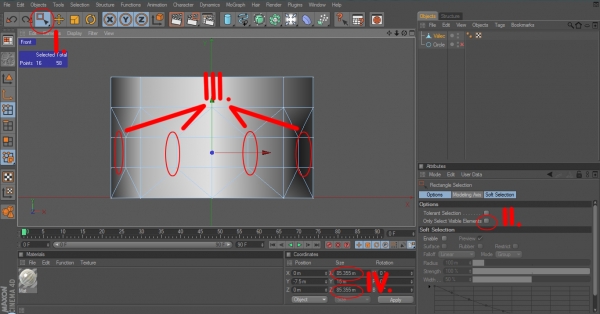

I. - select rectangular selection tool

II. - check, if select only visible is unchecked

III. - select these points

IV. - in coordinates bar simply add *1,08 behind X and Z sizes(we need to set the points to the circular shape)

Creation of Diamond - Brilliant round cut: Step 5

step 6 of 16

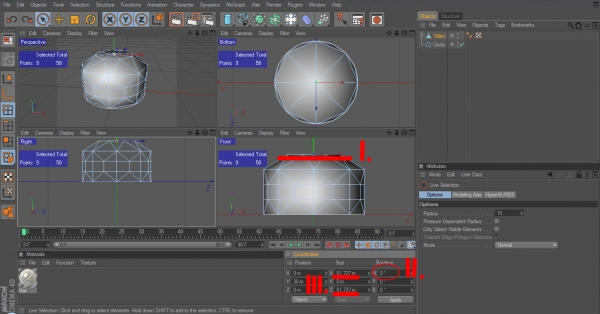

I. - select all top points

II. - rotate these points to -22,5°

III. - simply add behind X and Z sizes *0,56

Creation of Diamond - Brilliant round cut: Step 6

step 7 of 16

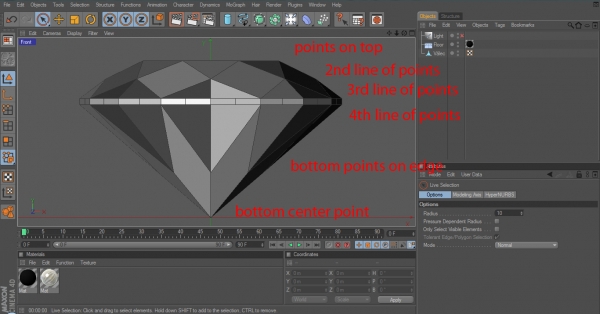

with rectangular selection tool select recent points, as descripted, and set them similar to this pic

Creation of Diamond - Brilliant round cut: Step 7

step 8 of 16

before you select polys, check if select only visible is checked, then select polys from the top wiew window, and use melt(U~Z).

Next select "red"polys, use melt, next the "blue" polys and finally use melt. Here we have the whole diamond(brilliant).

Creation of Diamond - Brilliant round cut: Step 8

step 9 of 16

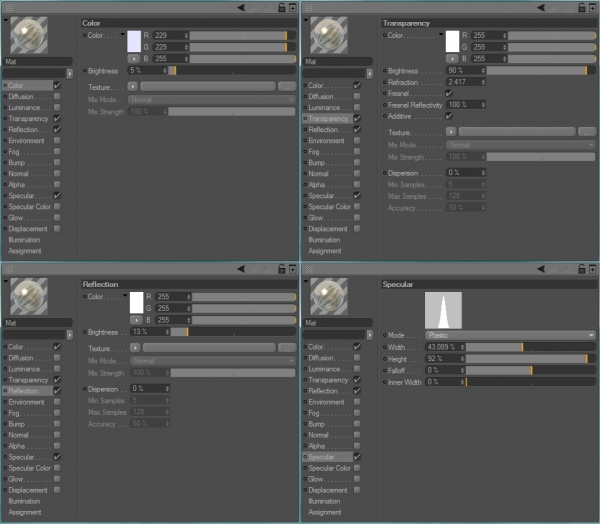

Settings for the diamond shader - especially the IOR-refraction, 2,417 for diamond.

Creation of Diamond - Brilliant round cut: Step 9

step 10 of 16

Another angle of scene

Creation of Diamond - Brilliant round cut: Step 10

step 11 of 16

another...

Creation of Diamond - Brilliant round cut: Step 11

step 12 of 16

...

Creation of Diamond - Brilliant round cut: Step 12

step 13 of 16

Closeup look at the diamond(new render)

Creation of Diamond - Brilliant round cut: Step 13

step 14 of 16

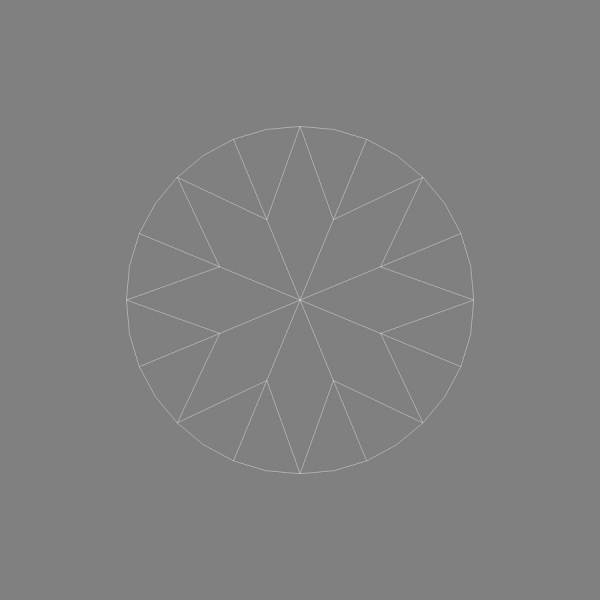

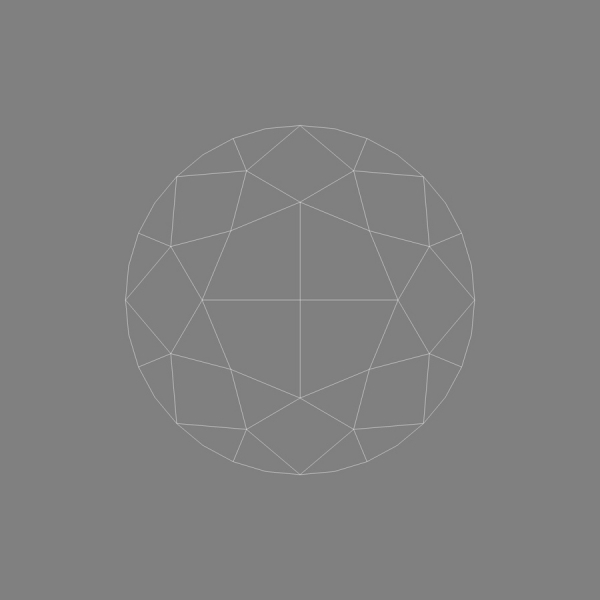

Top wiew wireframe

Creation of Diamond - Brilliant round cut: Step 14

step 15 of 16

Bottom wiew wireframe...

Creation of Diamond - Brilliant round cut: Step 15

step 16 of 16

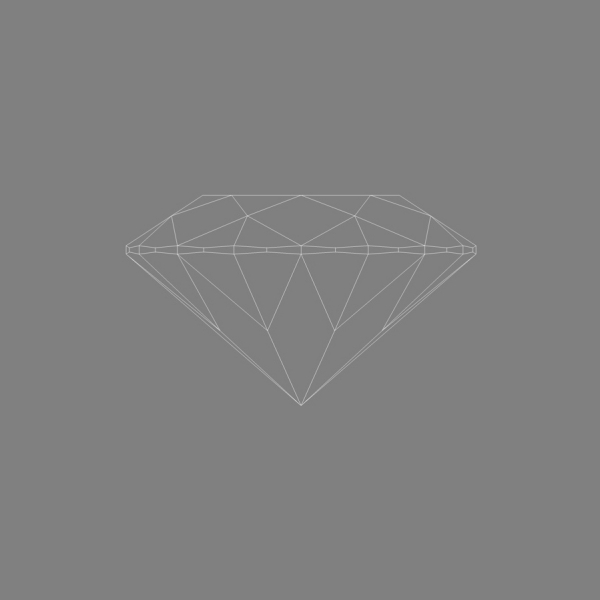

Side wiew wireframe...

Creation of Diamond - Brilliant round cut: Step 16

Final result

Creation of Diamond - Brilliant round cut: Final Result
